Detectors and other receivers

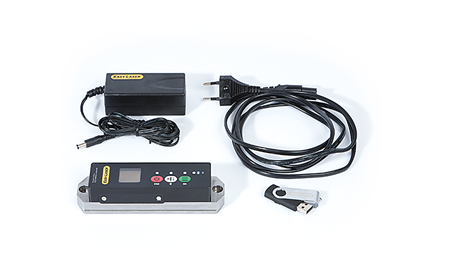

Digital Precision Level E290, complete kit
Digital precision level (12-0846), complete kit with Battery charger 100–240 V AC (03-0821), safety strap (12-0915) and USB memory stick with documentation (03-0914).

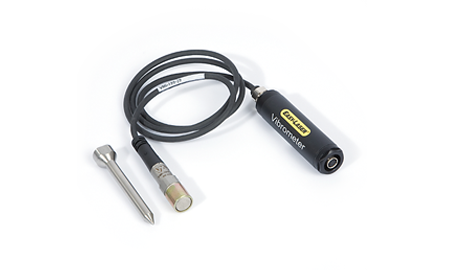

E-series Vibrometer probe E285
For measuring vibration level (mm/s, inch/s) and bearing condition value (g-value).

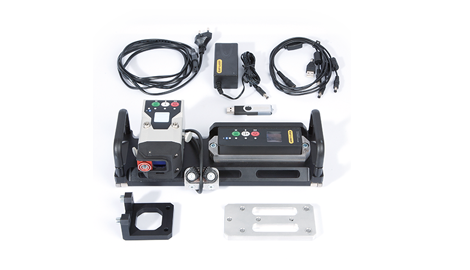

Roll alignment kit
Includes roll bracket (12-0849), detector E2 (12-0845), digital level E290 (12-0846), adapter plate (12-0874), charger (03-0821), DC charging cable (12-0750), DC to USB adapter (12-0751), USB memory stick with documentation (03-0914).
Wireless detector for belt alignment
Detector that reads off the sheaves position in two directions (horizontal+vertical) at the same time. With built-in display showing offset and angular values.
Easy-to-use vibration analyser that quickly diagnoses vibration level, unbalance, misalignment and looseness. The direct readout of 1x, 2x, 3x RPM, total level as well as bearing condition provides necessary information during installation and alignment. The XT280 connects to the XT Alignment App, making it possible to document the result as PDF.

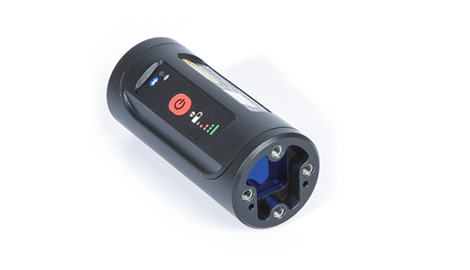

Detector E9, 2-axis PSD
Detector diameter 45 mm [1.77“]. 2 axis PSD, 20x20 mm [0.79”x0.79”]. Built-in 360° electronic inclinometer. Built-in wireless communication and rechargeable battery. There is also a connector on the back side for standard “red cable” (charging and data transfer). Mounting threads on both ends, for tube adapters (01-0777) or other suitable brackets (e.g. 12-0767 and 12-0553).

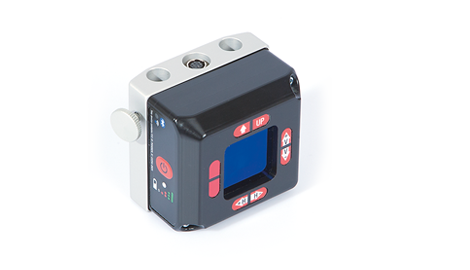

Detector for the E-series. 2 axis PSD, 30x30 mm [1.18”x1.18”]. Built-in wireless communication. Battery status indicator. Built-in 360° electronic inclinometer. One connector on top side. Normally mounted on rods, but also has additional mounting threads on back side.
