Display units

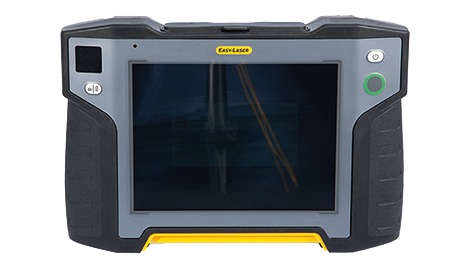

Easy-Laser XT11

The XT11 display unit is rugged, robust, with wear resistant rubberized protective coating. It is IP66 and 67, dust, water- and shockproof. As standard a 13 MP camera for documentation is built-in, and you can also choose to add an IR camera to the XT11 – shoot a thermal image before and after alignment and include with the documentation! Winner of the IF Design Award and Red Dot Design Award for its superb ergonomics, features and looks.


Thermal image view.


Features

A large 8", glove-enabled touch-screen makes the information clear and the app easy to use. The small OLED display (A) shows battery status of both measuring units and display unit. You can check battery status also when the unit is turned off (F). The clever lock-screen button (F) prevents unintentional clicks, for instance when moving around on the job. Four fastening points for shoulder strap or customized solutions. Heavy-duty battery for very long operating times; up to 16 hours. The camera can be removed if security reasons require it.


Watch this video to discover more:

A. OLED display

B. Display brightness sensor

C. Large and clear 8” glove-enabled touch-screen

D. Dust cover and protection for connectors (Note: connectors are dust and waterproof)

E. Enter button

F. Screen-lock button/Battery status-check button

G. Ergonomic, rubber coated housing

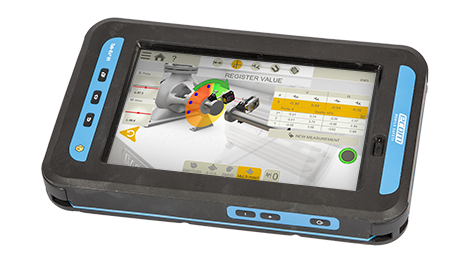

ecom Tab-Ex®

Based on Samsung GALAXY Tab Active, ecom's hazardous area tablet is certified for use in Zone 1/ 21 & DIV 1 hazardous areas.
For use together with Ex approved shaft alignment system XT550.

For more detailed information, please see the ecom web site: https://www.ecom-ex.com


A. Rubber coated housing

B. Large and clear 8" TFT display, glove-enabled
