Adjustment Guide

Measuring units that can be used: XT50 and XT70.

In the Adjustment Guide, only simulated values are displayed. By using this feature you can simulate adjustments on the machine feet before doing the real adjustment. The Adjustment Guide is especially useful to investigate the effect on the alignment from adding shims of known thickness at the machine feet.

1. Tap and . Only available when you have made a measurement.
2. Tap the foot you want to adjust.
3. Simulate an adjustment.

4. Tap to return to the previous screen.

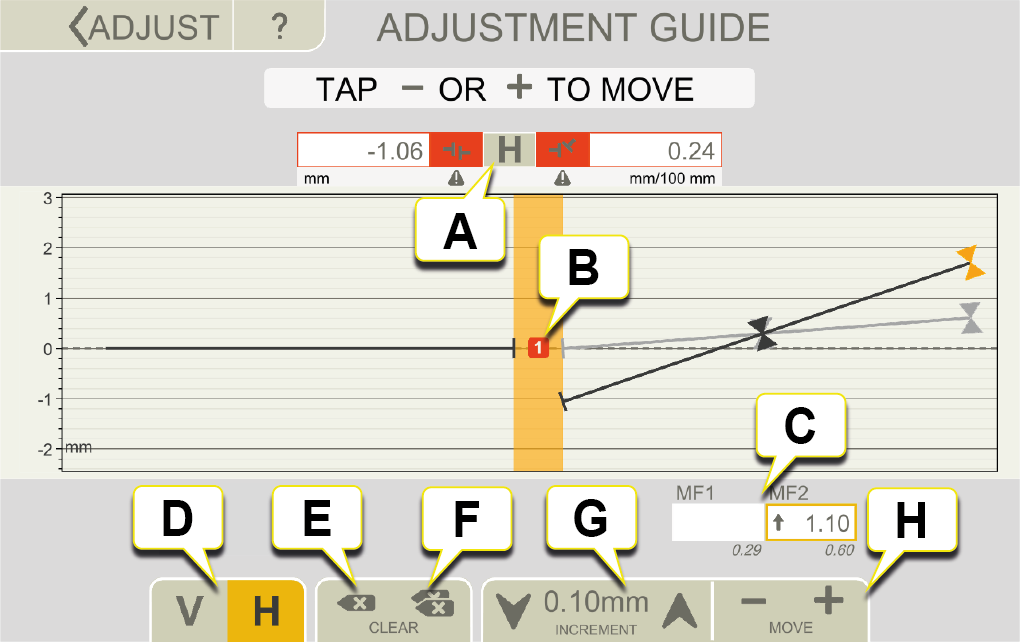

1. Offset and angle values.

2. Coupling number. Color indicates tolerance. Go to Tolerance
3. Tap to select movement simulation. Then use arrows to change values (see G below).

4. Tap to alternate between vertical (V) or horizontal (H) view.

5. Tap to clear the selected value.
6. Tap to clear all inserted values.
7. Increment value. Tap the arrows to change the value of the increment.
8. Tap to adjust the simulated vertical or horizontal values.
