Display unit XT11
Part. no 12-0961

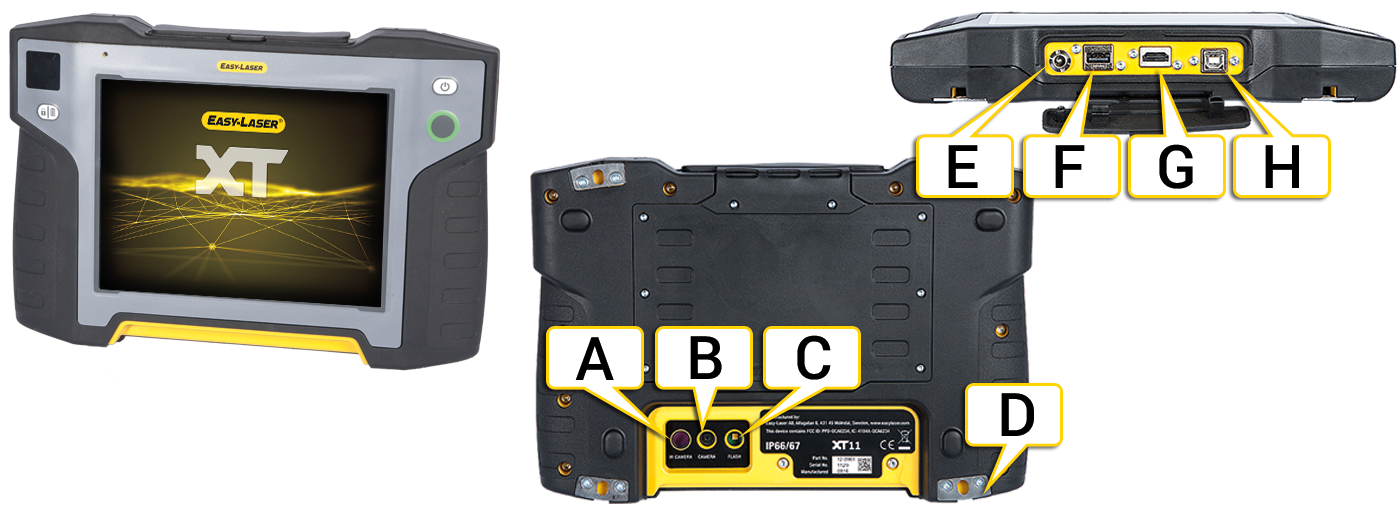

- IR Camera (optional)
- 13 Mp Camera
- LED Light
- Fastening points for shoulder strap (x4)
- Charger
- USB A
- HDMI connector
- USB B
NOTE! This device is a part of a measuring system and the intended use for the device is industrial measuring together with other Easy-Laser products, according to the instructions in this manual. The device is intended for professional use only. Neither Easy-Laser nor its authorized distributors shall be liable for damage to machinery or systems caused by improper use of this device.
SERVICE AND SUPPORT
If the unit is damaged it has to be sent for repair. Contact your local service center as found on www.easylaser.com.
Display unit
| Type of display/size | SVGA 8" color screen, backlit LED, multitouch |
| Battery type | Heavy duty Li Ion chargeable |
| Operating time | Up to 16 h continuously |
| Connections | USB A, USB B, Charger, AV |
| Communication | Wireless technology |
| Camera, with diode lamp | 13 Mp |
| IR camera (optional) | FLIR LEPTON® Long Wave Infrared |
| Help functions | Built-in manual |
| Environmental protection | IP class 66 and 67 |
| Operating temperature | -10–50 °C |
| Storage temperature | -20–50 °C |
| Relative humidity | 10–95% |
| OLED display | 96x96 pixels |
| Housing material | PC/ABS + TPE |
| Dimensions | WxHxD: 274x190x44 mm [10.8x7.5x1.7”] |
| Weight | 1450 g [51.1 oz] |
| Altitude | 0-2000m |
| Designed for outdoor use (pollution degree 4) | |
Switch battery
If batteries need to be switched, contact your local service center.
Only use batteries provided by Easy-Laser.
NOTE! As of November 2022, the XT alignment app will no longer support the XT11 rev 1 Display unit (serial number 129231 or lower). XT alignment app version 8.1 and higher will not be compatible with XT11 rev 1.
