XT190 BTA
Part. no 12-1053
When aligning with the Easy-Laser® BTA you reduce the wear on sheaves/pulleys, belts, bearings and seals as well as reducing vibration.
NOTE! This device is a part of a measuring system and the intended use for the device is industrial measuring together with other Easy-Laser products, according to the instructions in this manual. The device is intended for professional use only. Neither Easy-Laser nor its authorized distributors shall be liable for damage to machinery or systems caused by improper use of this device.
NOTE! If not using the system for a long period of time, remove the battery from the laser transmitter.
NOTE! Clean the units and the windows at the apertures with a dry cotton cloth.
SERVICE AND SUPPORT
If the unit is damaged it has to be sent for repair. Contact your local service center as found on www.easylaser.com.
Laser transmitter
| Type of laser | Diode laser |
| Sheave diameter | > 60 mm [2.4”] |
| Laser class | Class 2 |
| Laser output power | <0.6 mW (low power mode) |
| < 4.8 mW (high power mode) | |
| Laser wavelength | 630–680 nm |
| Beam angle | >55° |
| Measurement Accuracy | Offset ±0.2 mm [±8 mils], Angle ±0.05° |
| Measurement Range | 40 mm –3 m [1.6 in –10 ft] (low power mode) |
| 0.5 m –10 m [20 in –33 ft] (high power mode) | |
| Battery type | 1xR6 (AA) 1.5 V |
| Operating time | Up to 12 h continuously |
| Operating temperature | -10–50ºC |
| Storege temperature | -20–50ºC |
| Housing material | ABS plastics / Hard anodized aluminium |
| Dimensions | WxHxD:147x87x31 mm [5.8x3.4x1.2”] |
| Weight | 265 g [9.35 oz] |
| Altitude | 0–2000 m |
| Designed for indoor use (pollution degree 2) | |
Laser classification
The D92 is classified as laser class 2, for more information Go to Safety precautions. These products are safe under reasonably foreseeable conditions of operation and are not harmful to the eyes provided that the products are used and maintained in accordance with this User Manual.
- Laser aperture

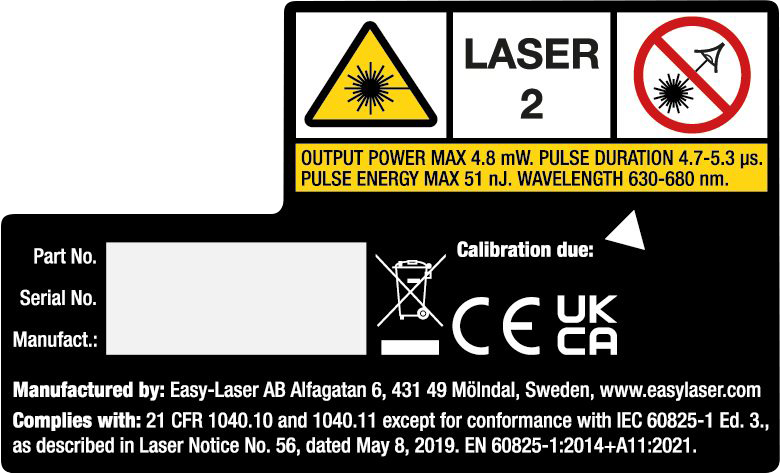

Label with safety precautions
Detector
| Sheave diameter | > 60 mm [2.4”] |
| Measurement range | 40 mm –3 m [1.6 in –10 ft] (when used with D92 in LOW power mode, or with D90) |
| 0.5 m –10 m [20 in –33 ft] (when used with D92 in HIGH power mode) | |
| Measurement accuracy |
Offset: ±0.1 mm [±4 mils] Angle: ±0.01° ±1 % |
| Detector range | Offset: ±3 mm [ ±0.12”] Angle: ±8° |
| Display resolution | Offset: 0.1 mm [0.01"] Angle: 0.01º |
| Display type | Yellow OLED 96x96 pixels |
| Communication | Wireless technology |
| Battery type | Li-Ion |
| Operating time | Up to 5 hours continuously |
| Operating temperature | -10–50ºC |
| Storage temperature | -20–50ºC |
| Relaitive humidity | 10–95% |
| Housing material | ABS plastics / Anodized aluminium |
| Dimensions | WxHxD: 94x94x37 mm [3.7x3.7x1.5”] |
| Weight | 190 g [6.7 oz] |
| Altitude | 0–2000 m |
| Designed for indoor use (pollution degree 2) | |
Detector battery
Press to see the battery status of the detector. While the battery is charging, there is a green flashing light. The laser transmitter flashes when the battery is low. Change the batteries before you continue to measure.
-
Red, flashing once: Battery empty.
-
Red, flashing twice: Battery needs charging.
-
Green, flashing three times: Good.
-
Green, fixed light: Battery full.
Switch battery
If batteries need to be switched, contact your local service center.
Only use batteries provided by Easy-Laser.
