XT280 VIB
Part No. 12-1050
Vibration analyser that quickly diagnoses vibration level, unbalance, misalignment and looseness.
NOTE! This device is a part of a measuring system and the intended use for the device is industrial measuring together with other Easy-Laser products, according to the instructions in this manual. The device is intended for professional use only. Neither Easy-Laser nor its authorized distributors shall be liable for damage to machinery or systems caused by improper use of this device.
SERVICE AND SUPPORT
If the unit is damaged it has to be sent for repair. Contact your local service center as found on www.easylaser.com.
| Size | 200 mm x 60mm x 26mm |
| Weight | 280g |
| Environmental | |
| Water, sand and dust | IP67 Waterproof |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 70°C |
| Power supply | 2xR6 (AA) 1.5 V |
| Battery life | Auto power OFF - typically 20 hours continuous operating time depending on brightness setting. |
| Frequency range | 2 Hz to 1 kHz (ISO) 1 kHz to 10 kHz (BDU) |
|
Max frequency resolution |
1.25 Hz @ 800 lines FFT setting Acceleration in g Displacement (mm, microns, inch) |
| Displayed Frequency Units | Hertz (Hz), RPM or CPM |
| Input range | User selectable with accelerometer sensitivity |
| Dynamic range | 96 dB (0.01g resolution) |
|
VA diagnostic bands (RPM = run speed) |
Unbalance 1x RPM |
Optional equipment

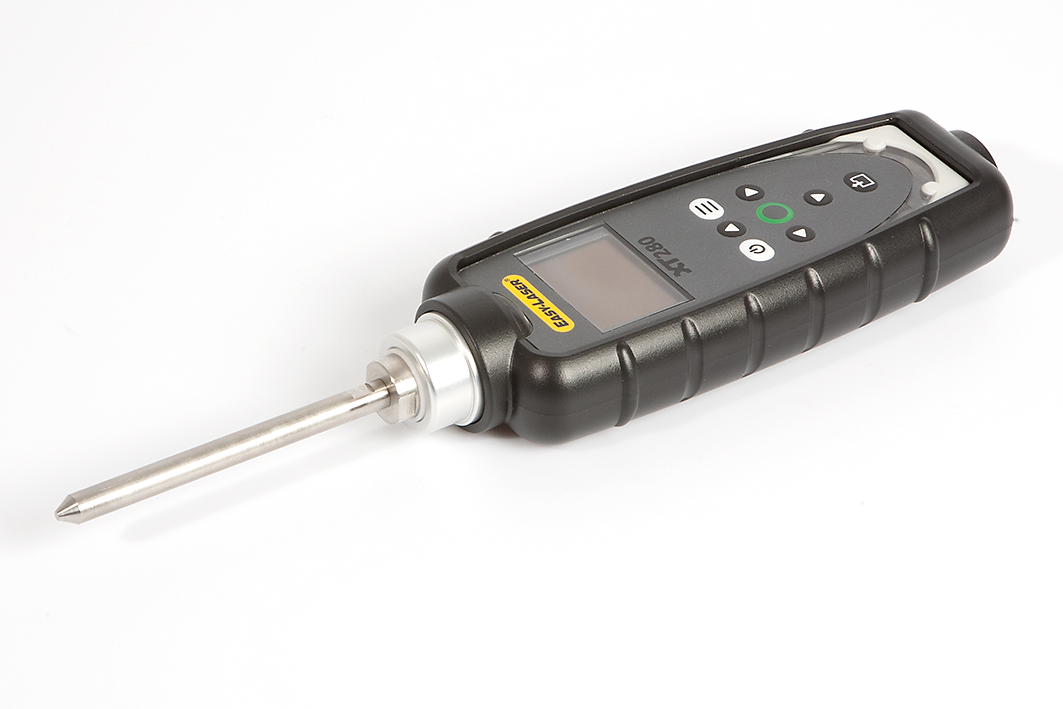

Stinger 03-1326 accessory probe (length 100 mm) and Magnet 03-1327.
