XT70 Technical data
Part. no 12-1045
Part. no 12-1046
The XT70 measuring units have a dot-type laser and 2-axis square PSD surfaces. It has 20x20mm PSD, and OLED displays which shows the angle of the units.
NOTE! This device is a part of a measuring system and the intended use for the device is industrial measuring together with other Easy-Laser products, according to the instructions in this manual. The device is intended for professional use only. Neither Easy-Laser nor its authorized distributors shall be liable for damage to machinery or systems caused by improper use of this device.
SERVICE AND SUPPORT
If the unit is damaged it has to be sent for repair. Contact your local service center as found on www.easylaser.com.
| Type of detector | 2 axis TruePSD 20x20 mm [0.79x0.79"] |
| Communication | Wireless technology |
| Battery type | Heavy duty Li Ion chargeable [3.7 V, 7.4 Wh, 2000 mAh] |
| Operating time | Up to 24 h continuously |
| Resolution | 0.001 mm [0.05 mils] |
| Measurment accuracy | ±1 µm ±1% |
| Measurement range | Up to 20 m [66 feet] |
| Type of laser | Diode laser |
| Laser wavelength | 630–680 nm |
| Laser class | Safety class 2 |
| Laser output power | <0.6 mW |
| Electronic inclinometer | 0.1° resolution |
| Environmental protection | IP class 66 and 67 |
| Operating temperature | -10–50 °C |
| Storage temperature | -20–50 °C |
| Relative humidity | 10–95% |
| OLED display | 128x64 pixels |
| Housing material | Anodized aluminum + PC/ABS + TPE |
| Dimensions | WxHxD: 76x76.4x45.9 mm [3.0x3.0x1.8"] |
| Weight | 272 g [9.6 oz] |
| Altitude | 0-2000m |
| Designed for outdoor use (pollution degree 4) | |
Switch battery
If batteries need to be switched, contact your local service center.
Only use batteries provided by Easy-Laser.
Laser classification
The XT70 is classified as laser class 2, for more information Go to Safety precautions.
These products are safe under reasonably foreseeable conditions of operation and are not harmful to the eyes provided that the products are used and maintained in accordance with this User Manual.
| Average power | Max. 0.6 mW |
| Pulse duration | 10–17 µs |
| Pulse energy | Max. 20 nJ |
| Wavelength | 630–680 nm |
| Beam divergence | < 1.5 mrad |
| Pulse repetition frequency | 32–47 kHz |

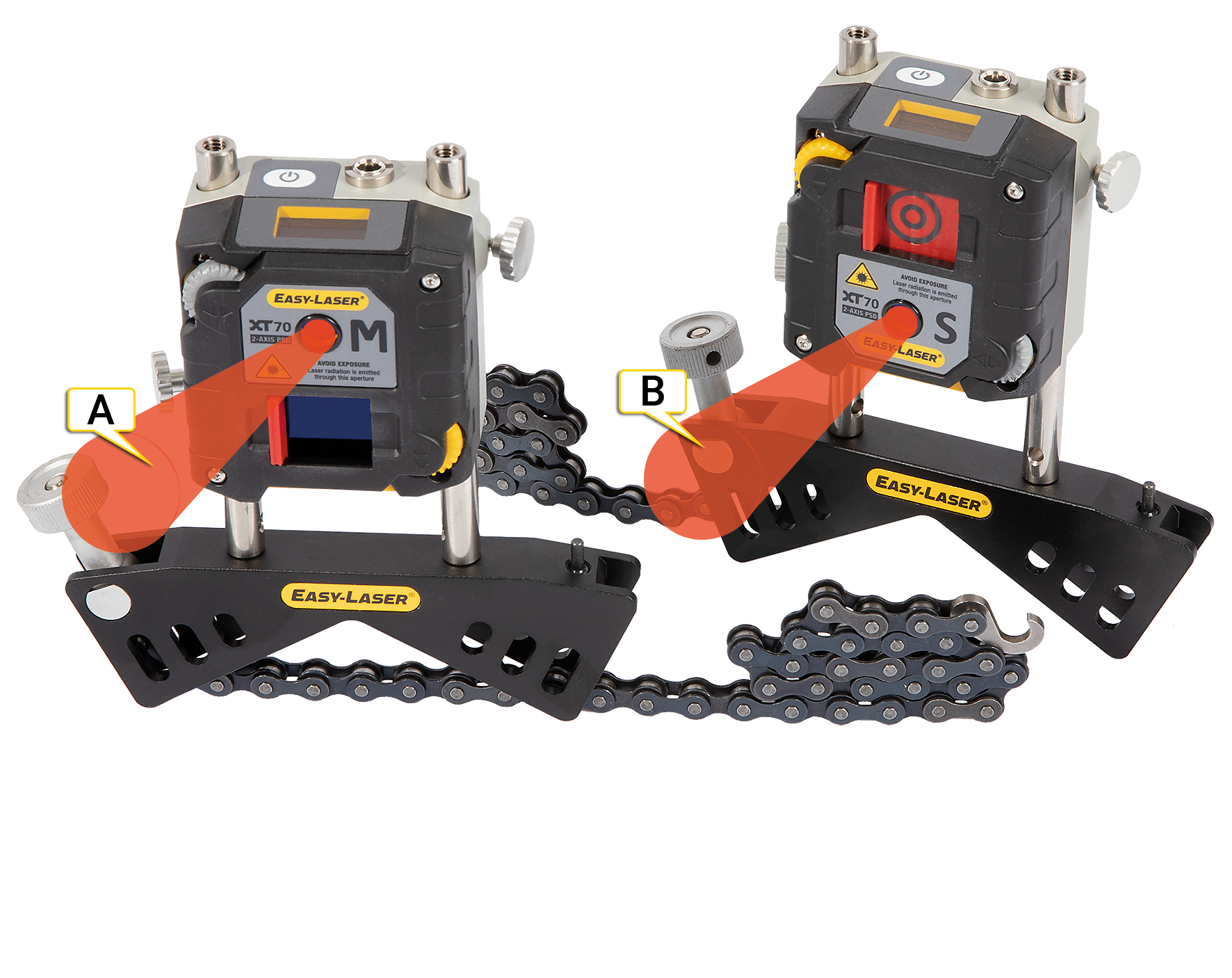

- Laser beam on M-unit
- Laser beam on S-unit
Labels with laser safety precautions
Label on the back of XT70:
Label on the front of XT70:
