XT770 Shaft
System Easy-Laser® XT770, Part No. 12-1096 (Large case).
With XT770 you can carry out the following:
- Align the machine
- Check base twist
- Check bearing play
- Check soft foot
- Measure machine movement over time
- Document and share the results

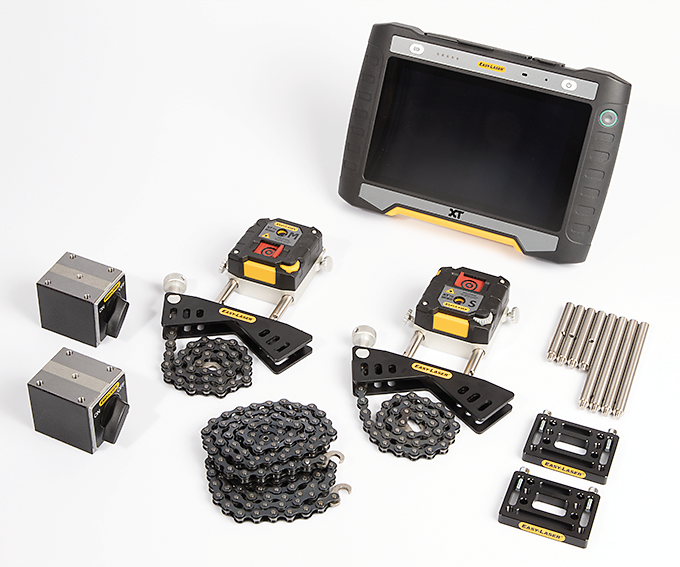

Easy-Laser® XT770 Shaft system (12-1096) includes:
| 1 | Measuring unit XT70-M |
| 1 | Measuring unit XT70-S |
| 2 | Shaft brackets with chains and rods |
| 4 | Rods 60 mm [2.36”] |
| 2 | Magnet base |
| 2 | Offset bracket |
| 2 | Extension chain 900 mm [35.4"] |
| 1 | Measuring tape 3 m [9.8’] |
| 1 | Hexagon wrench set |
| 1 | Charger (100–240 V AC) |
| 1 | DC split cable for charging |
| 1 | DC to USB adapter, for charging |
| 1 | Shoulder strap for display unit |
| 1 | Quick reference manual |
| 1 | Cleaning cloth for optics |
| 1 | USB memory with manuals |
| 1 | Documentation folder |
| 1 | Carrying case Medium (or Large GEO) |
Display Unit XT12 (12-1291/12-1292) is sold separately and is not included in the XT770 Shaft system (12-1096).
System 12-1128 also includes:
| 1 | Laser transmitter XT20 |
| 1 | Multi bracket for XT laser |
| 1 | Magnet base with turnable head (replaces one of the regular magnet bases) |
| 4 | Rods 120 mm [4.72"] |
System 12-1134 also includes:
| 1 | Laser transmitter XT22 |
| 1 | Multi bracket for XT laser |
| 1 | Magnet base with turnable head (replaces one of the regular magnet bases) |
| 4 | Rods 120 mm [4.72"] |
Weight for 12-1096: 13.0 kg [28.7 lbs]
Weight for 12-1128: 16.0 kg [35.3 lbs]
Weight for 12-1134: 16.2 kg [35.7 lbs]
