XT980 Sawmill
System Easy-Laser® XT980 Sawmill, Part No. 12-1335.
With XT980 you can carry out the following:
- Measuring and adjustment of reducers, counterholds, saw blades and discs
- Use with circular saws or band saws
- Measure absolutely straight for 40 metres
- Document and share the results

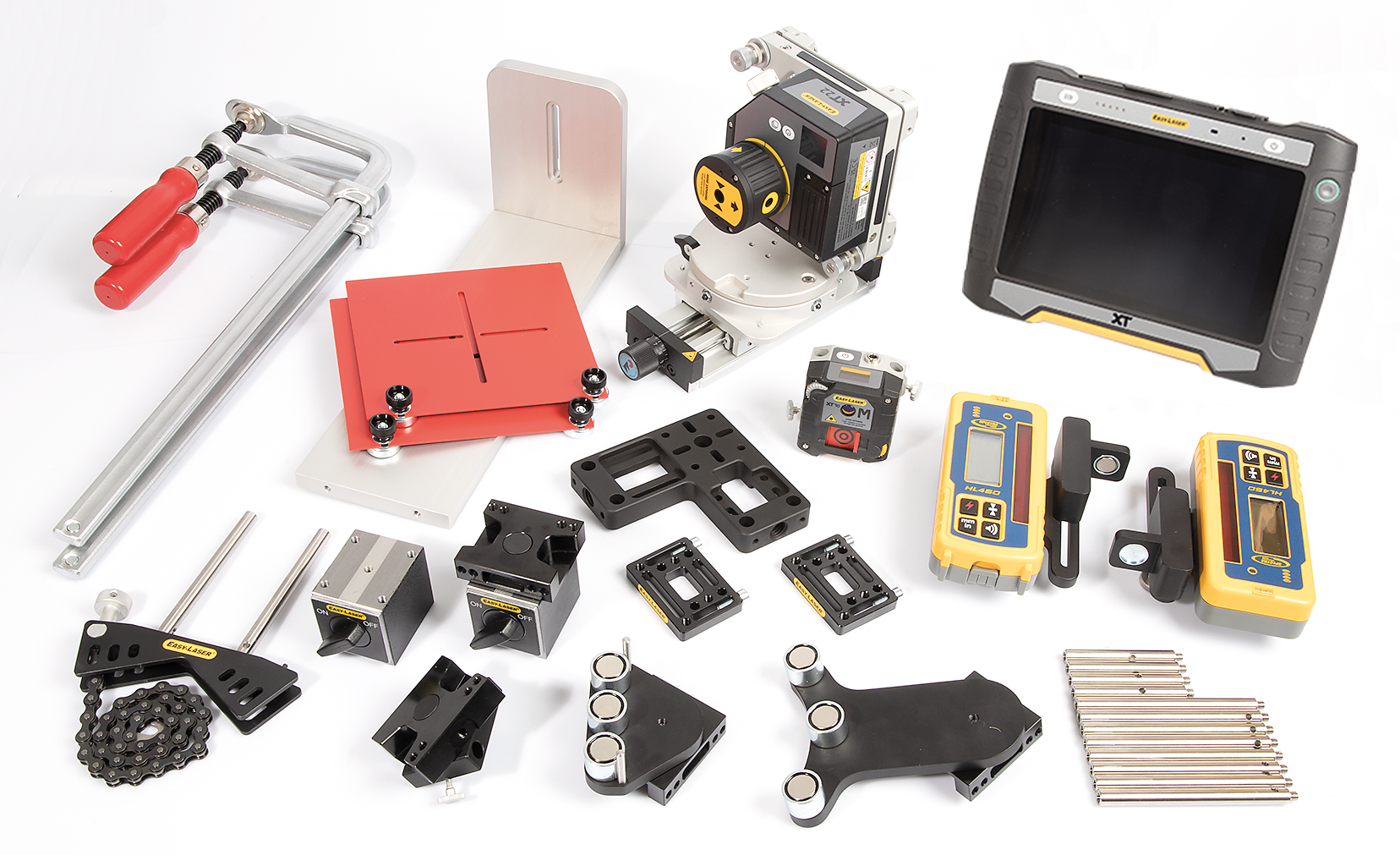

Easy-Laser® XT980 Shaft system (12-1335) includes:
| 1 | Laser transmitter XT22 |
| 1 | Measuring unit XT70-M |
| 2 | Electronic target |
| 1 | Multi bracket for XT laser |
| 1 | Magnet base with turnable head |
| 1 | Magnet base |
| 1 | Shaft bracket with chain |
| 2 | Offset bracket |
| 2 | Bracket for electronic target |
| 1 | Rotating detector bracket for rods |
| 1 | Magnet bracket long, with turnable head |
| 1 | Magnet bracket short, with turnable head |
| 1 | Bracket (Set square) for index table |
| 1 | Index table 90° |
| 2 | Set of Rods (4x120 mm) [5.08"] |
| 1 | Set of Rods (4x75 mm) [2.95"] |
| 2 | Large target with magnets |
| 1 | Quick Guide (English) |
| 1 | Measuring tape 5 m |
| 1 | Documentation folder GEO |
| 1 | USB cable |
| 1 | Battery charger (100–240 V AC) |
| 1 | DC split cable for charging |
| 1 | DC to USB adapter |
| 2 | Screw clamps |
| 1 | Hexagon wrench set |
| 1 | Toolbox XT GEO |
| 1 | Shoulder strap for Display unit |
| 1 | Transportation case, with wheels |
Weight for 12-1335: 28.0 kg [61.7 lbs]
