Prepare

Remove the cardan shaft and mount the measurement units.

1. M-unit on the movable (M) machine. This is the adjustable shaft.
2. S-unit on arm bracket.
3. Stationary (S) machine. This is the non adjustable shaft.



Mount the equipment

1. Remove the cardan shaft.
2. Mount the arm bracket on the S machine. You can use the magnet bases or the mount the bracket directly on the flange.
3. Mount the S-unit on the arm bracket.
4. Mount the magnetic M bracket on the movable machine.
5. Mount the M-unit on the bracket.
6. Cone the laser beams. Go to Cone the laser beam

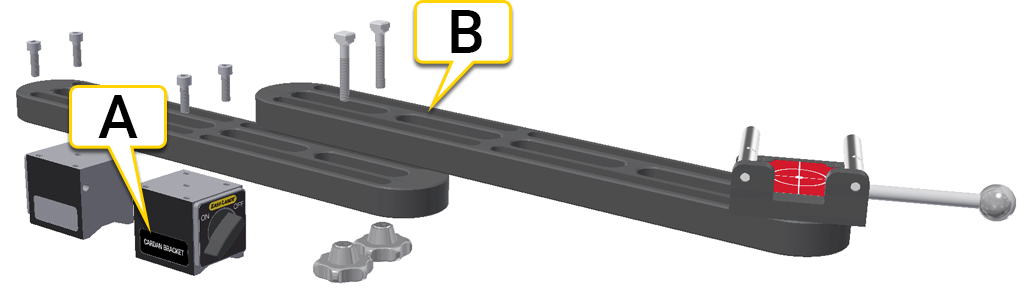

Arm bracket for the S-unit



1. Mount the magnet bases. Note! Only use the magnet bases delivered with the system, marked "Cardan Bracket".
2. Use two arm brackets for large offsets. The arm bracket has an offset range of 0 - 800mm.

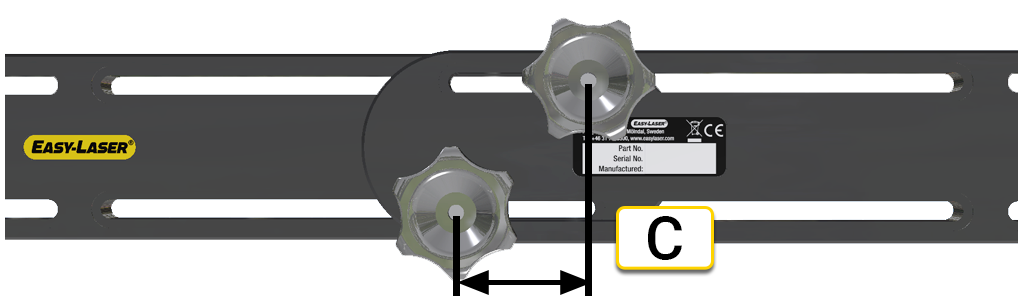

3. At least 40mm between the screws.



NOTE! Make sure that the measuring units are charged.
