Shim values

To view this, you need to enter number of bolts and diameter of bolt circle on the Prepare view.

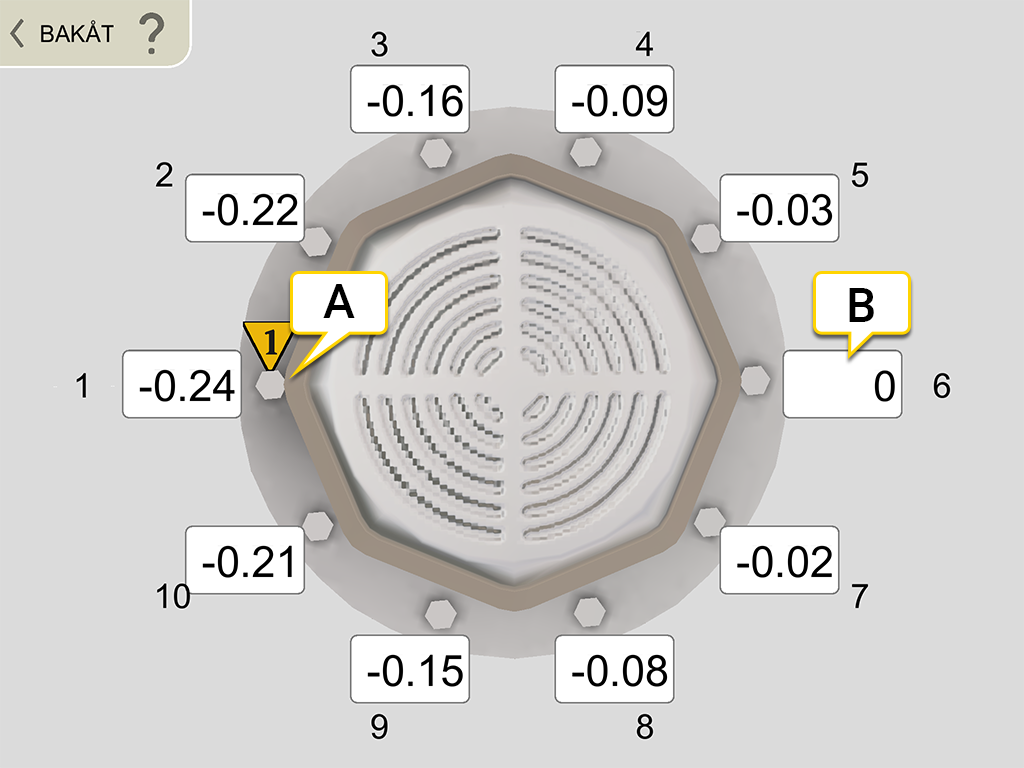

1. Select to open Shim value view. The values are not live.
2. Read the values. The highest bolt is calculated as 0.00. Values below zero indicates that the bolt is low and need shimming.
3. Select to return to the Result view. If you have adjusted the machine, you need to remeasure the coupling.

1. First bolt at 9 o'clock.
2. The highest bolt is calculated as 0.00.

NOTE! If you shim the machine, remeasure from position 9 o’clock to update all measurement values.
