XT290 Technical data
Part. no 12-1241

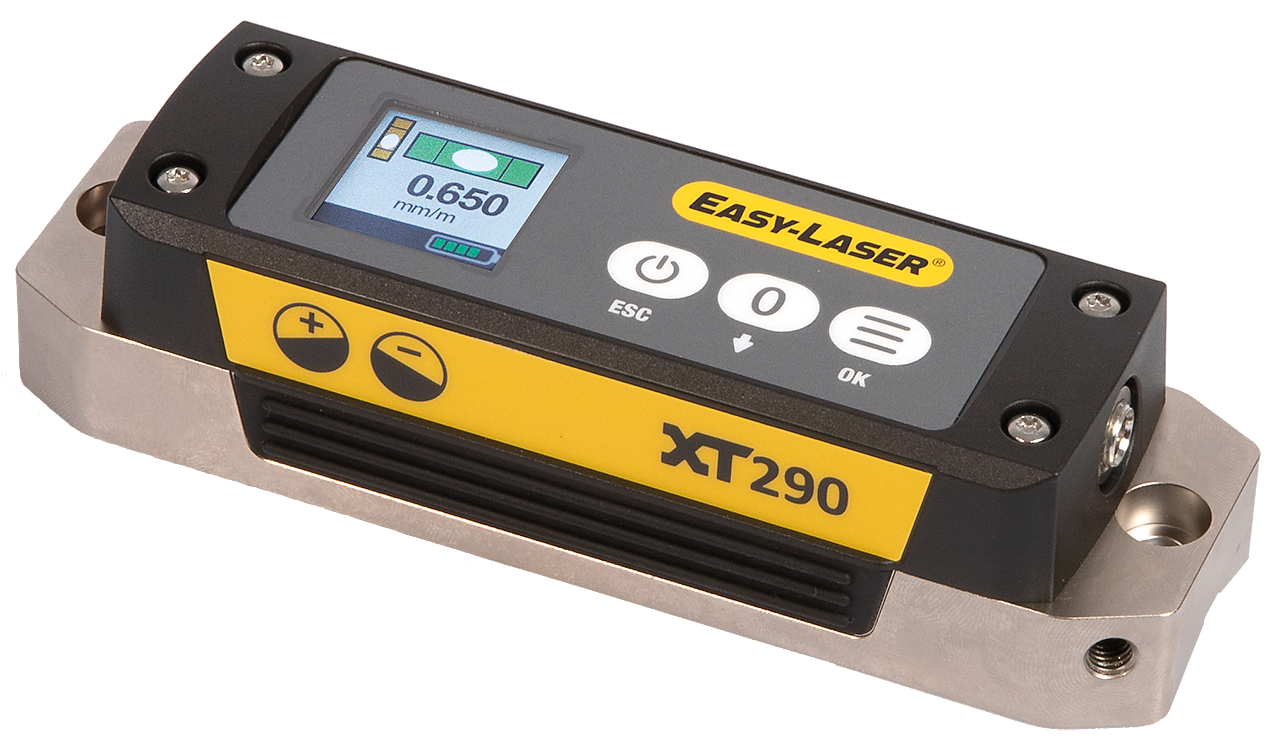

Digital Precision Level XT290 for setting-up and aligning most types of machine, for example levelling machine tables, rolls, bases etc. Other areas of use include straightness, flatness and parallelism.
NOTE! This device is a part of a measuring system and the intended use for the device is industrial measuring together with other Easy-Laser products, according to the instructions in this manual. The device is intended for professional use only. Neither Easy-Laser nor its authorized distributors shall be liable for damage to machinery or systems caused by improper use of this device.
SERVICE AND SUPPORT
If the unit is damaged it has to be sent for repair. Contact your local service center as found on www.easylaser.com.
| Displayed resolution | 0.1 / 0.01 / 0.001 mm/m [mils/inch] |
| 0.001 / 0.0001 / 0.00001 inch/foot | |
| 10 / 1 / 0.1 arcsec | |
| 0.01 / 0.001 / 0.0001 degrees | |
| Precision level, measuring range | ± 20 mm/m [mils/inch] (pitch) |
| Precision level, accuracy | ±0.02 mm/m ±1% [±0.02 mils/inch ±1%] |
| Precisiont level, sensitivity | 0.001 mm/m [0.001 mils/inch] |
| Inclinometer, measuring range | ±180° (pitch and roll) |
| Inclinometer, accuracy | ±0.2° (within range ±5°), ±1° (within range ±180°) |
| Type of display | TFT 240x240 pixels, RGB color |
| Communication | BT wireless technology, 20 m [65'] range |
| Environmental protection | IP Class 66/67 |
| Warning sensors | Temperature change and vibration |
| Operating temperature | -10–50 °C [14–122 °F] |
| Storage temperature | -20–50 °C [-4–122 °F] |
| Relative humidity | 10–95% |
| Operating time | Up to 20 hours continuously |
| Charging temperature | 0 to +40 °C [32 to 104 °F] (temperature inside the unit) |
| Internal battery | Li-Ion chargeable [3.7 V, 7.4 Wh, 2000 mAh] |
| Material | Hardened, polished and corrosion resistant steel, PC/ABS plastic |
| Dimensions | WxHxD: 149.0x37.3x47.1 mm [5.87x1.47x1.85"] |
| Weight | 548 g [19.3 oz] |
| Altitude | 0-2000m |
| Designed for outdoor use (pollution degree 4) | |
Switch battery
If batteries need to be switched, contact your local service center.
Only use batteries provided by Easy-Laser.
