Measure using 9-12-3

Measuring units that can be used: XT40, XT50, XT60 and XT70.

The measuring positions are registered at positions 9, 12, 3 o’clock. The inclinometers are not used.

Preparations

Before you start measuring, make sure you have done the preparations you need.

  • Mount the measuring units.
  • To calculate results, you need to enter at least the distance between the measuring units.
  • Tap a target to connect measuring units. Go to Select measuring units
  • If needed, perform a rough alignment.
  • If needed, measure Softfoot, Go to Softfoot

Measure

It is possible to switch measuring method before you have registered a value.

  1. Tap on the tab to select the method 9-12-3.
  2. Adjust laser to the center of the targets. If needed, adjust the units on the rods, then use laser adjustments knobs.
  3. Turn shafts to 9 o’clock.
  4. Tap to register the first position.
  5. Turn shafts to 12 o’clock.
  6. Tap to register the second position.
  7. Turn shafts to 3 o’clock.
  8. Tap to register the third position.
  9. Tap to go to the Result view, or tap to measure again.

The registered values are saved when you leave the Measure view. If you return to the Measure view, it is possible to do a new measurement.

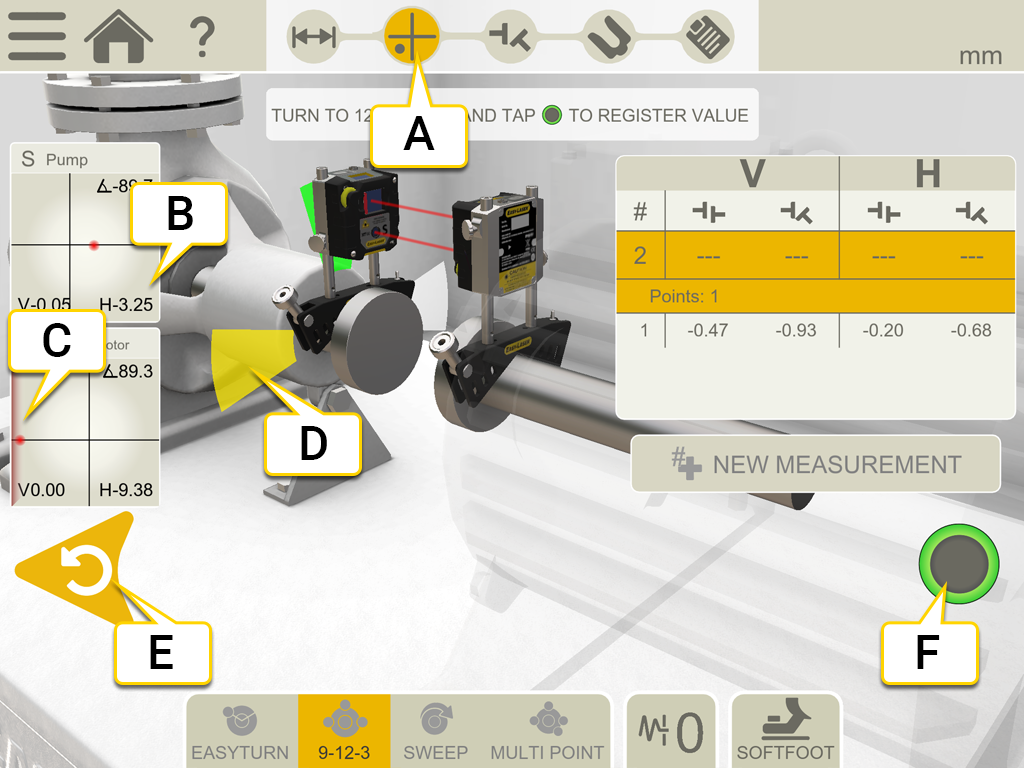

  1. The Measure icon is active in the workflow.
  2. Tap to select detector.
  3. Edge warning. When the laser beam is close to the edge, the edge is “lit up” as a warning. It is still possible to register values when the edge warning is active.
  4. Yellow = registered position.
    Green = turn shafts to green area.
  5. Delete registered value.
  6. Tap to register value.
Make a new measurement. This makes it possible to check the repeatability of the measurement.
Measure using EasyTurn™.
Measure using 9-12-3.
Measure using Multipoint.
Measure using Continuous sweep.
Set Filter value.
Measure Softfoot.

Spacer shaft in measurement table

  1. Vertical values for angle A and B
  2. Horizontal values for angle A and B
