Measure using EasyTurn™

Measuring units that can be used: XT40, XT50, XT60 and XT70

With EasyTurn™, it is possible to measure with as little as 40º spread between the measurement points. However, for an even more accurate result, try to spread the points as much as possible.

Preparations

Before you start measuring, make sure you have done the preparations you need.

  • Mount the measuring units.
  • To calculate results, you need to enter at least the distance between the measuring units.
  • Tap a target to connect measuring units. Go to Select measuring units.
  • If needed, perform a rough alignment.

  • If needed, measure Softfoot. Go to Softfoot

Measure

It is possible to switch measuring method before you have registered a value.

  1. Tap on the tab to select the method EasyTurn.
  2. Adjust laser to the center of the targets. If needed, adjust the units on the rods, then use laser adjustments knobs.
  3. Tap to register the first position. A red marking is displayed.

  4. Turn the shafts at least 20º.

  5. Tap to register the second position.

  6. Turn the shafts at least 20º.

  7. Tap to register the third position.
  8. Tap to go to the Result view, or tap to measure again.

The registered values are saved when you leave the Measure view. If you return to the Measure view, it is possible to do a new measurement.

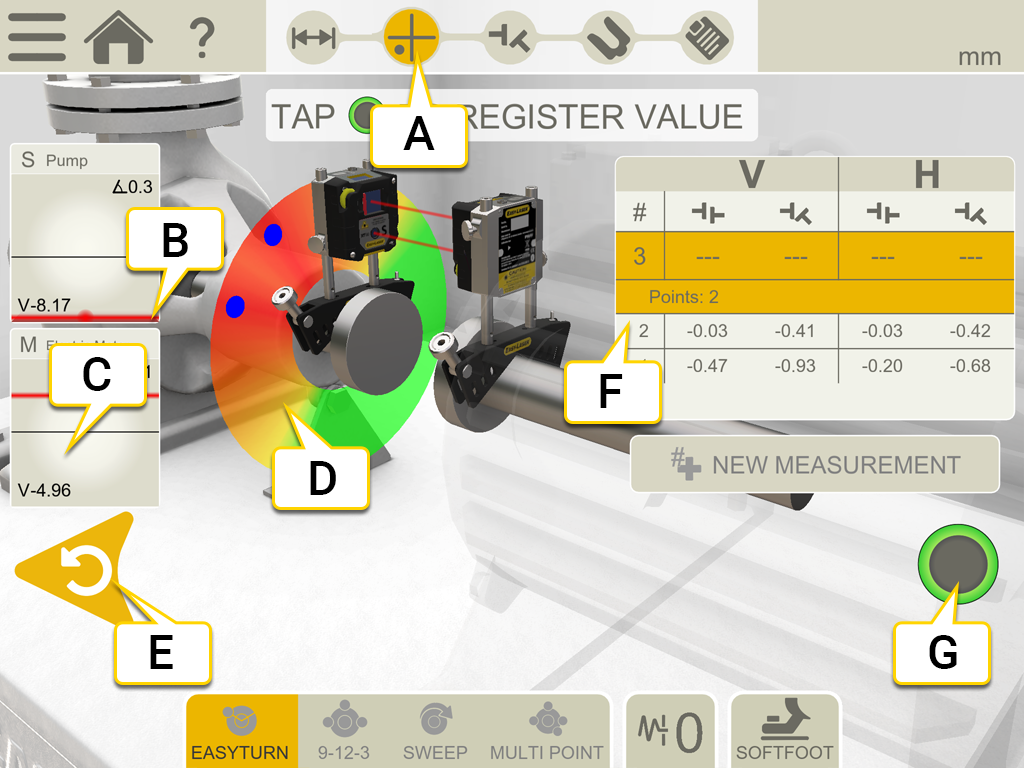

  1. The Measure icon is active in the workflow.
  2. Edge warning. When the laser beam is close to the edge, the edge is “lit up” as a warning. It is still possible to register values when the edge warning is active.
  3. Tap to select detector.
  4. Red = turn shafts outside the red marking.
    Green = turn shafts to green area.
    Blue = registered position.
  5. Delete registered value.
  6. Measurement table. If you have selected spacer shaft, see information below.
  7. This icon is gray when it not possible to register a value.
Make a new measurement. This makes it possible to check the repeatability of the measurement.
Measure using EasyTurn™.
Measure using 9-12-3.
Measure using Multipoint.
Measure using Continuous sweep.
Set Filter value.
Measure Softfoot.

Spacer shaft in measurement table

  1. Vertical values for angle A and B
  2. Horizontal values for angle A and B

Zero inclinometer

If the machine is mounted on an inclined base plane, you can manually set the inclinometer to a new 12 o'clock position. The following measurements will then use the new inclinometer settings.

  1. Choose the measuring method you want to use.
  2. Turn the measuring units so that the rods are perpendicular to the base plane.
  3. Tap and .
  4. Confirm the desired position for the measuring units by tapping . The inclinometer will now be set to zero.

Your inclinometer adjustment will be applied during the whole measurement session, but will be restored when you start a new measurement from the start menu.
