Laser transmitter D22
-
Rotatable head with angular prism.
-
Tilting screw.
-
Tilting table.
-
The release lever has to be removed before the D22 can be mounted on a tripod.
Tilting screws
The tilting screws on the levelling table of the laser transmitter have to be operated carefully and according to instructions.
Visual rough alignment to (detector) target
Check the position of the fine adjustment screw. It should be in its nominal position appro. 2.5 mm.
- Loosen the locking screw.
- Adjust with the course screw to wanted position.
- Tighten the locking screw.
Digital fine adjustment to detector and read values
- Check so that the locking screw is tightened.
- Adjust with the fine adjustment screw to wanted value.

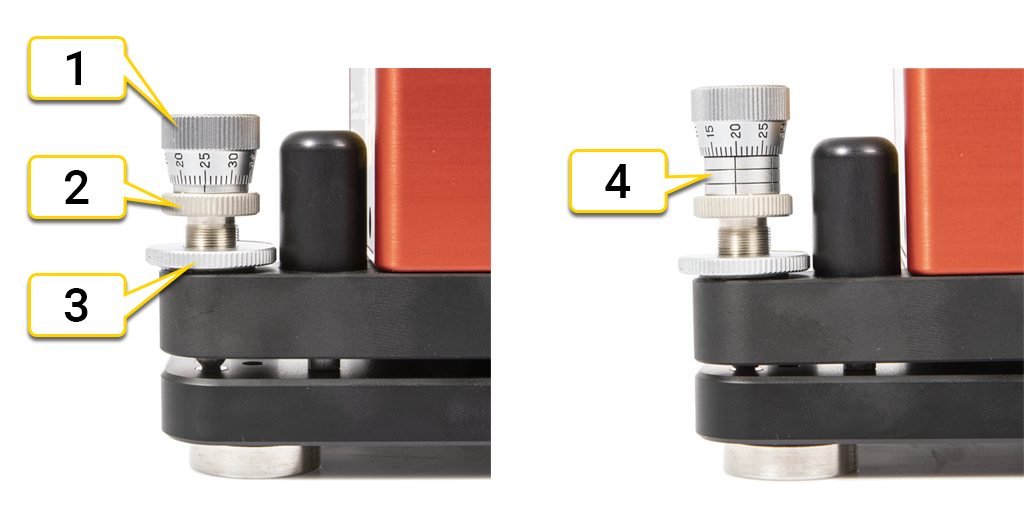

- Fine adjustment screw
- Coarse screw
- Locking screw
- Maximum position
Use an approved safety strap to prevent equipment from falling and causing injuries. Choose a safety strap that has been approved for the weight it should carry, and for the circumstances under which it will be used. Always follow your company's internal rules for safe work. The safety strap should be connected to the equimpent using the M6 screw provided (part. no 01-1402). Check the strap for damages and wear regularly. If it has been involved in a sharp drop, please replace it. Fasten the strap above the equipment.
