Overview

In this program you can measure any application where no other measurement program is applicable, for example bearing play check or rotating shaft quick test without having to specify any machine parameters.

The Values program gives you plain values and the possibility to register a larger number of measuring points than in the application programs. You will see live readings from the measuring units. The program can also handle dynamic measurements which means you can record values over a period of time with a set frequency.

You are free to choose any Easy-Laser geometric laser transmitter (except spin laser) to point the laser beam on your M measuring unit. The S measuring unit only accepts an M measuring unit as laser source. A line laser unit can only be combined with another line laser unit.

On the start view, tap to open the program.
Measuring unit detectors to be used: XT40-M, XT50-M, XT60-M, XT70-M and XT9. (Please note that the line laser units XT40-M and -S can only work with each other.) Use the M unit as detector and the S unit as transmitter. If a separate laser is used, the M unit should be used as the detector.

Laser transmitters to be used: XT20/XT22, D22, D25, D26, D75, E30 and all the shaft alignment units.

Other units: You can also use the Values program to register values from the Digital Precision Level XT290.

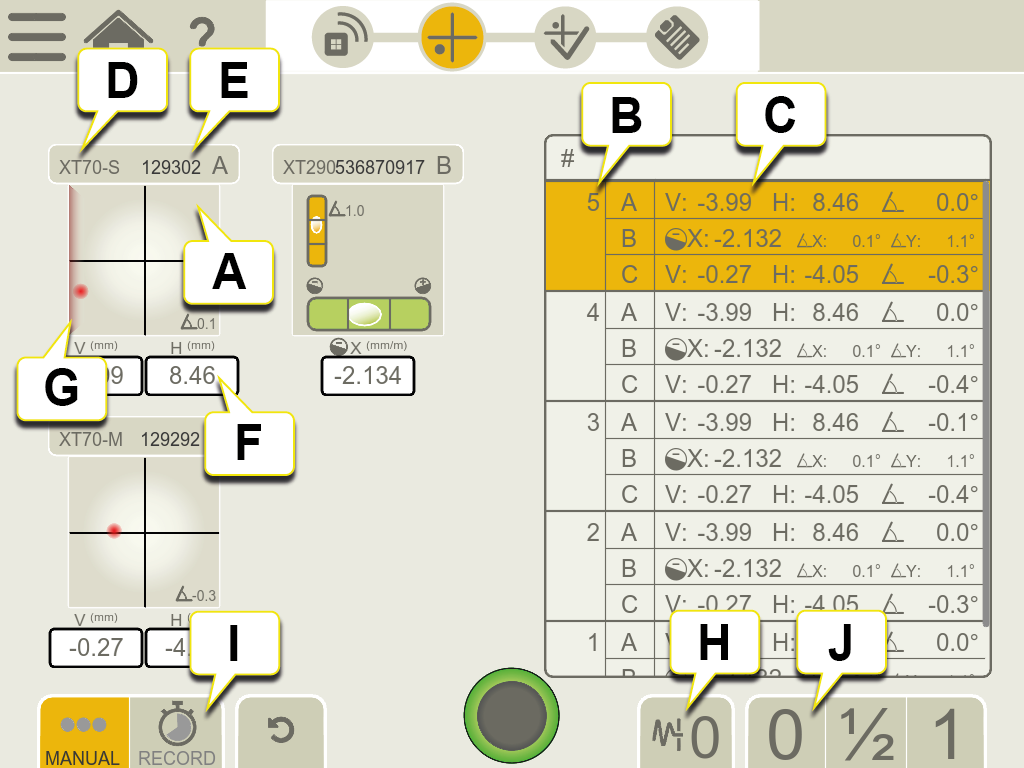

  1. Live Device View. (1-4 devices can be connected). Go to Prepare
  2. Measurement instance.
  3. Registered values.
  4. Device type.
  5. Serial number.
  6. Live reading of detector.
  7. Edge warning. When the laser beam is close to the edge, the edge is “lit up” as a warning. It is still possible to register values when the edge warning is active, but the measurement accuracy may be reduced.
  8. Filter. Go to Filter
  9. Autorecord. Go to Autorecord
  10. Zero set or halve value. Go to Measure



Context menu

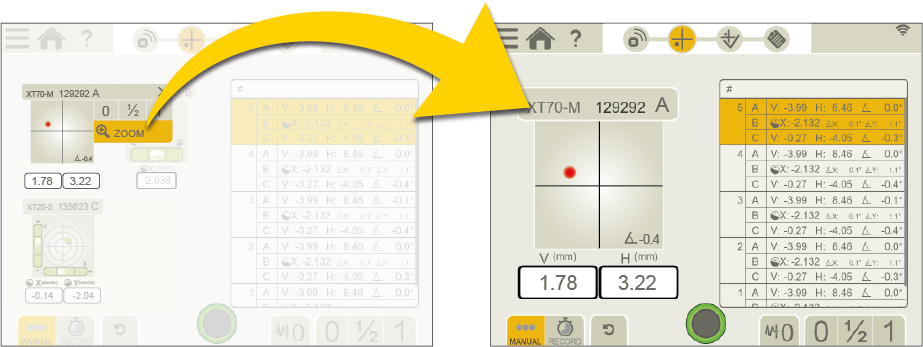

Tap the Live Device View to open Context menu. In the Context menu you can enlarge the device information, halve or zero set values for the selected detector live reading. Here you can also set angular units and resolution for Precision level XT290 and Laser transmitter XT20/XT22. Go to Measure
In the Context menu you can also calibrate laser XT20/XT22 electronic levels.

NOTE! Halving value is not applicable to Precision Level XT290.







Calibration of XT20/XT22

NOTE! If you want to use electronic levels, these must be calibrated before you start measuring.

Go to Calibrate XT20/XT22 electronic levels horizontally

Go to Calibrate XT22 electronic level vertically
