Overview Vibration

Easy-Laser® XT280 is a simple to use vibration monitoring and analysis tool that allows easy display of vibration signals. The XT280 automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment and looseness. The system is designed to enable you to take vibration measurements from assets (e.g. pumps, motors, fans and bearings). The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored.

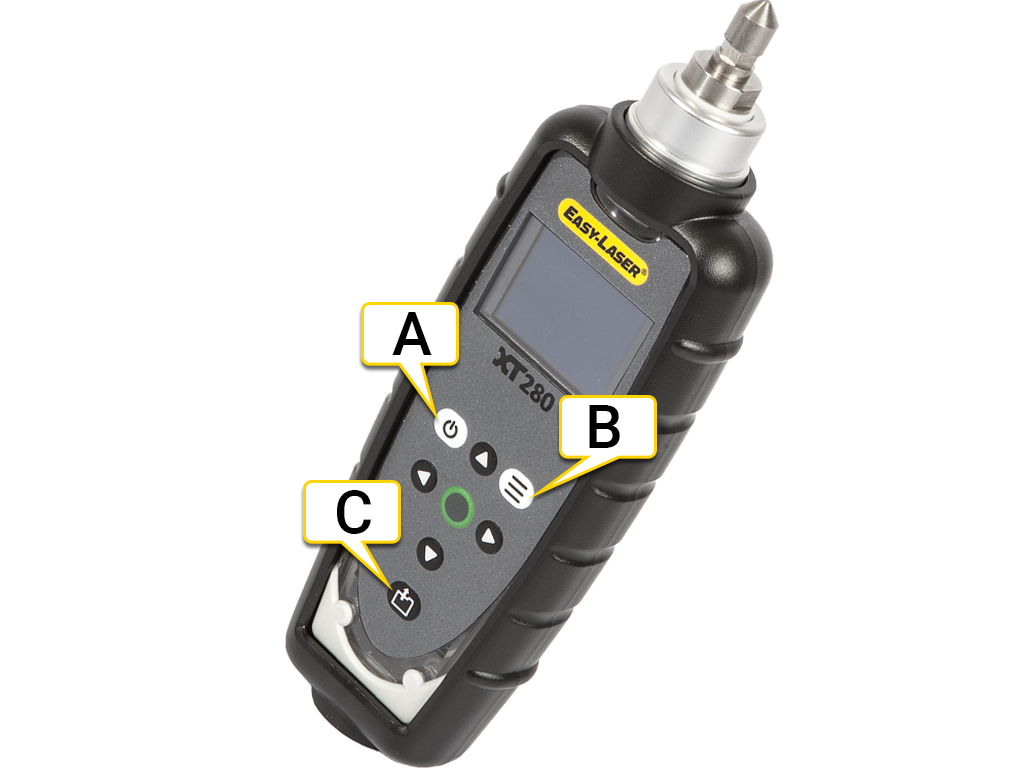

1. On/Off . It will automatically turn off if not used for 1 minute. Change the default setting in the Device settings. If the XT280 is connected to the Vibration program, the auto-off is disabled.
2. Press to show Configuration menu.
3. Press show Asset manager.

For information regarding technical data: Go to XT280 VIB.

Replace the batteries

The XT280 uses two AA batteries.

1. Remove the protective cover (A).
2. Unscrew the battery cover (B) and replace the batteries. (Torx T9)

NOTE! If not using the system for a long period of time, remove the batteries.
