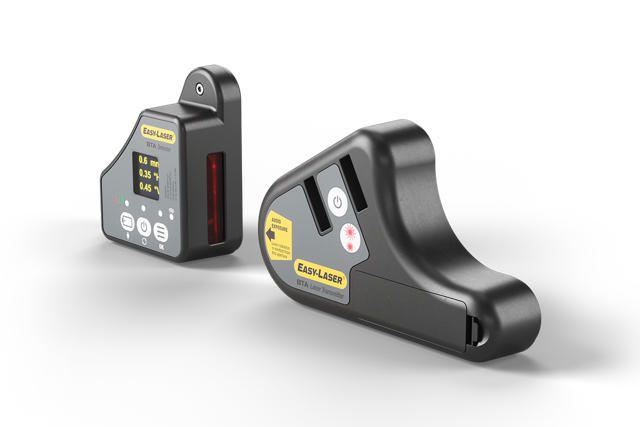

Digital tool for alignment of sheaves/pulleys
XT190 BTA Digital
When aligning with the Easy-Laser® XT190 BTA you reduce the wear on sheaves/pulleys, belts, bearings and seals, and you also get lower noise and vibration levels. The accuracy of the digital readout means that you can align within prescribed tolerances and rely on the result.
- Works with all common sheave types
- Shows real-time offset and angle
- Attaches magnetically
- Generates a digital report
Quick, accurate alignment
The XT190 BTA can be used across all your belt-driven machines, from small HVAC units to large industrial drives.

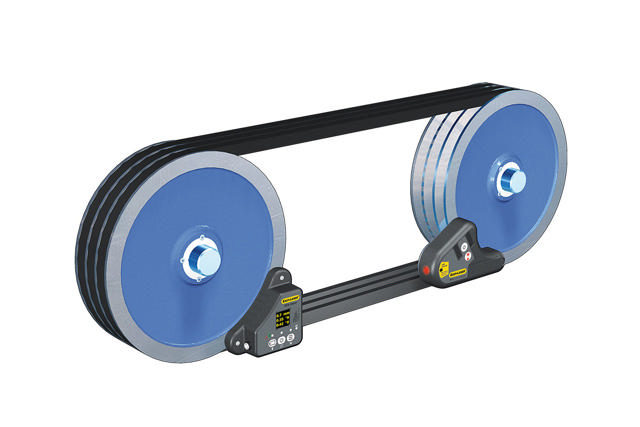

The transmitter generates a laser plane parallel to the reference sheave. The detector reads the position in relation to the laser plane and provides a live digital display of both offset and angular value. Shim and adjustment values are automatically calculated, which makes the alignment of the adjustable machine very simple. The work can be performed by one person alone, in a significantly shorter time than with traditional methods.
Many read-out options
Follow the adjustment on the integrated OLED display, in the free XT Alignment app on your phone or tablet, or on a separate Easy-Laser display unit. It is also possible to read off visually on targets (included).
Key strengths of XT190 BTA Digital
Automatic documentation
A report is automatically generated in PDF and Excel format.
Multi-platform compatibility
Works with the industrial-grade Easy-Laser display unit or most iOS/Android devices.
Product videos
XT190 Laser alignment tool for belt transmissions
The Easy-Laser® XT190 is a wireless, digital tool for alignment of sheaves/pulleys. When aligning belt drives with the XT190 you reduce the wear on sheaves and pulleys, belts, bearings, and seals, and you also reduce vibration.
System parts
Below are some of the components included the system. Click “A complete system contains” to view the full list.

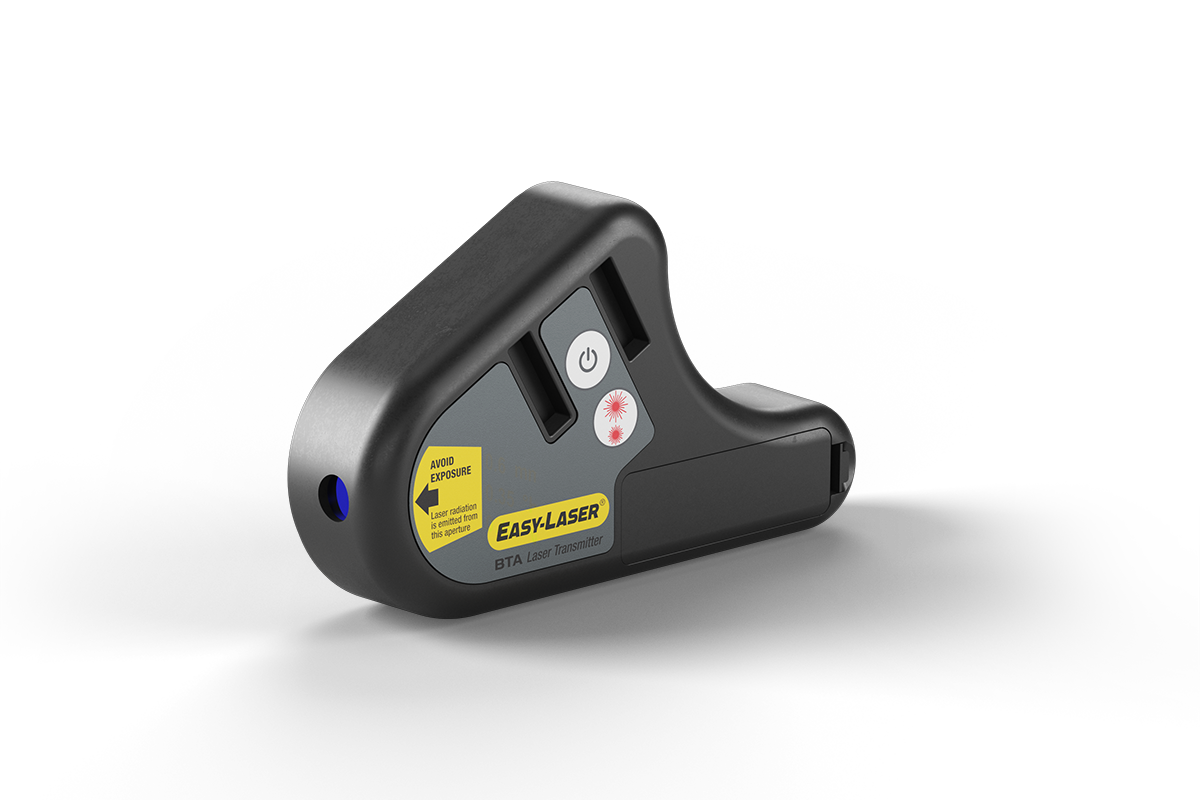

Laser transmitter for belt alignment

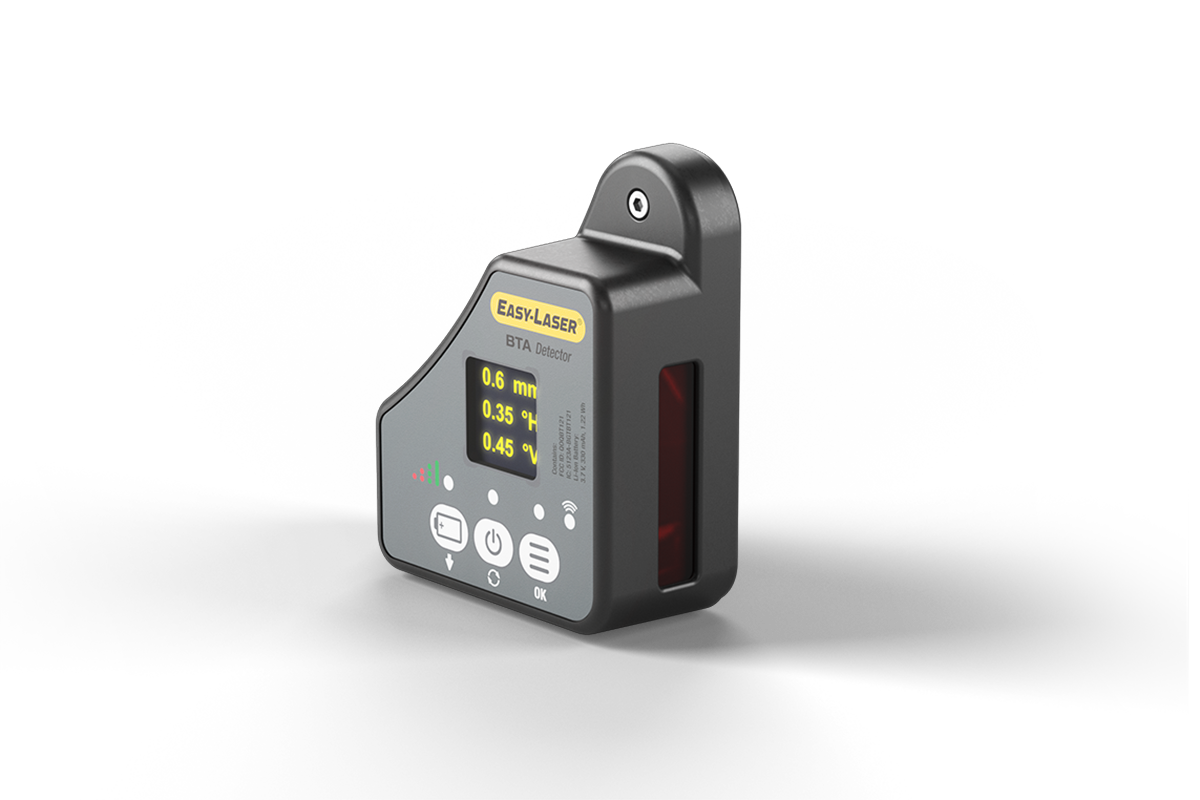

Wireless detector for belt alignment

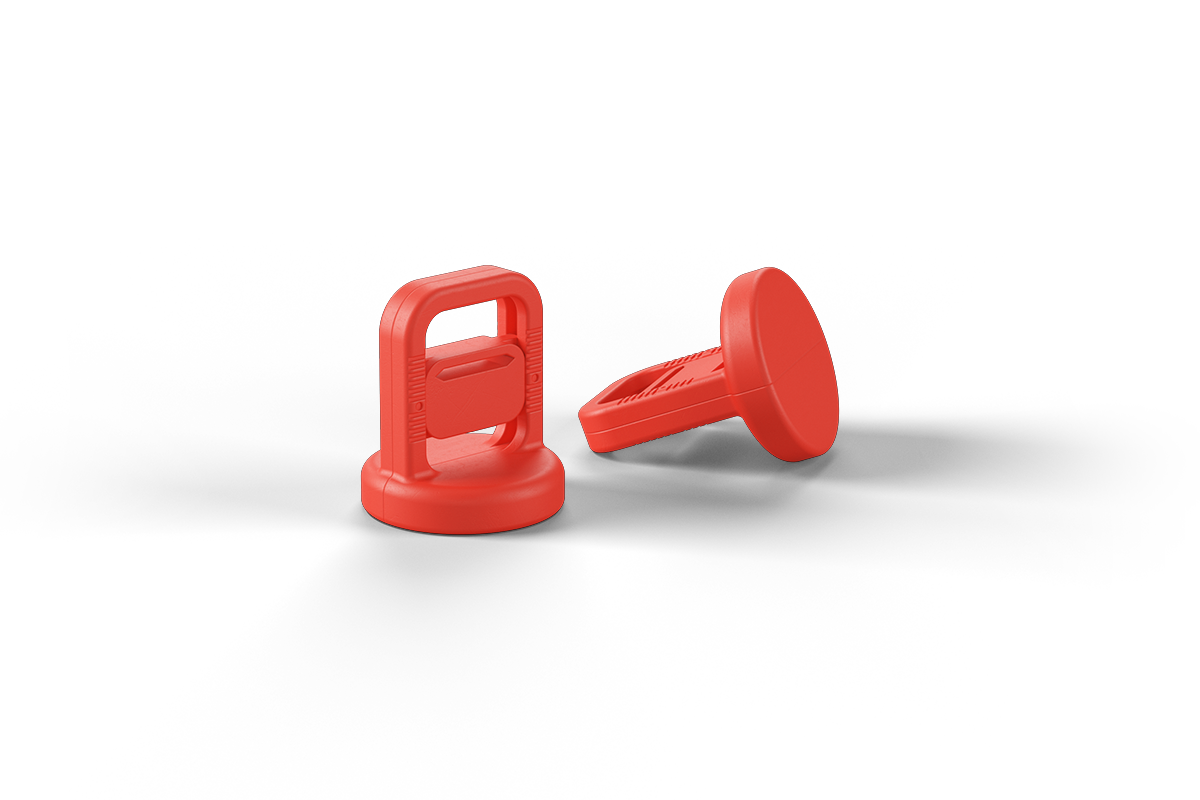

Targets
- 1 Laser transmitter
- 1 Detector unit
- 2 Targets
- 1 Charger (100-240 V AC) with cable
- 1 USB memory stick with documentation
- 1 Carrying case
XT12 Display unit
Rugged, robust, industrial grade tablet with wear resistant rubberized protective coating.
- IP66 and 67, dust- water- and shockproof.
- Large 8” glove enabled touch-screen.
- 16 hours operating time.
Technical data
| Accuracy Laser plane – Reference plane | Parallelity: < 0.05°, Offset < 0.2 mm [0.008"] |
| Battery operation | Up to 12 h continuously |
| Battery type | 1 x R6 (AA) 1.5 V |
| Beam angle | 60° |
| Dimensions | WxHxD: 145x86x30 mm [5.7x3.4x1.2"] |
| Housing material | ABS plastics + Hard anodized aluminium |
| Laser Class | Safety class 2 |
| Laser wavelength | 635–670 nm |
| Measurement distance | 40 mm to 3 m (LOW power mode), 0.5 m to 10 m (HIGH power mode) |
| Output power (average) | < 0.6 mW (LOW power mode), < 4.8 mW (HIGH power mode) |
| Sheave diameters | 60 mm [2.5"] and larger |
| Weight | 265 g [9.35 oz] |
| Battery operation | 5 hours continuously |
| Battery type | Li Ion |
| Communication | BT wireless technology |
| Dimensions | WxHxD: 95x95x36 mm [3.7x3.7x1.4”] |
| Housing material | ABS plastics + Anodized aluminium |
| Measurement distance | Up to 3 m [9.8’] between transmitter and detector |
| Measuring distance | Axial offset: ±3 mm [0.12”]. Angular value: ±8° |
| Type of display | Yellow OLED 96x96 pixels |
| Weight | 190 g [6.7 oz] |
