The perfect tool for basic laser shaft alignment
XT440 Shaft
A cost-effective laser alignment system that has everything you need for efficient and accurate alignment of rotating machinery. Choose the XT440 when you need a straightforward and dependable tool for basic shaft alignment tasks.
- Align the machine
- Check soft foot
- Document and share the results
Function and capabilities
With Easy-Laser XT440 you can perform all necessary steps of shaft alignment on horizontal and vertical/flange-mounted machines, including soft foot check. The line laser technology provides a fast setup and easy measurement process.
A detailed alignment report is automatically created after each completed job.
Key strengths of XT440 Shaft
Line laser technology
Cost-effective and easy to use.
Rugged design
Designed for harsh industrial environments (IP66 and 67).
Long operating times
Measuring units run up to 24 hours continuously.
Automatic documentation
A report is automatically generated in PDF and Excel format.
Multi-platform compatibility
Works with the industrial-grade Easy-Laser display unit or most iOS/Android devices.
Features
The programs below are the most commonly used with this system.

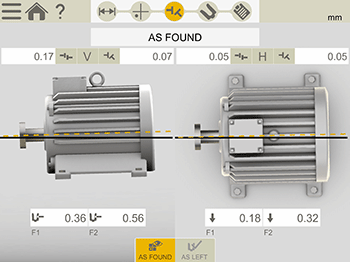

The user interface is intuitive and guide you through the measurement process. It is animated and zooms into the most important things for each step. You can save the measurements of a machine for As found and As left in the same file.

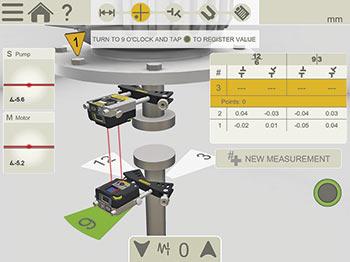

For measurement and alignment of vertically and flange mounted machines.

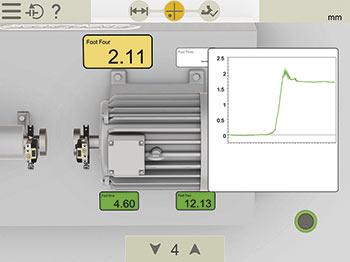

Alignment work begins with a soft foot check. The soft foot check ensures that the machine is resting evenly on all its feet by indicating which foot/feet should be adjusted. This is an important part of securing a reliable alignment. After the soft foot check is complete, you can go directly to the alignment program with all of the machine’s distance values saved.

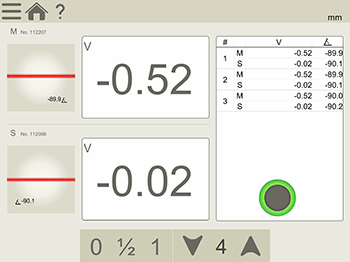

Use the M and S measuring units included to measure as with digital dial gauges, but with laser precision and the possibility to document the measurement result. Another application is to check shaft radial play (bearing play).
Measurement points are recorded at fixed points 9, 12 and 3 o’clock. This is the classic three-point method which can be used in most cases. The preferred method for situations where the machine to be aligned is mounted on a moving object, and it is not possible to use the inclinometers (e.g., on ships, cranes, wind turbines etc.).
Ideal method for coupled machines where you manually rotate the shafts to any position. The EasyTurn™ function allows you to begin the measurement process from anywhere on the turn. You can turn the shaft to any three positions with as little as 20° between each position to register the measurement values. An easier-to-use version of the three-point method (see 9–12–3).
Shaft misalignment is responsible for up to 50% of all costs related to rotating machinery breakdowns.
System parts
Below are some of the components included the system. Click “A complete system contains” to view the full list.

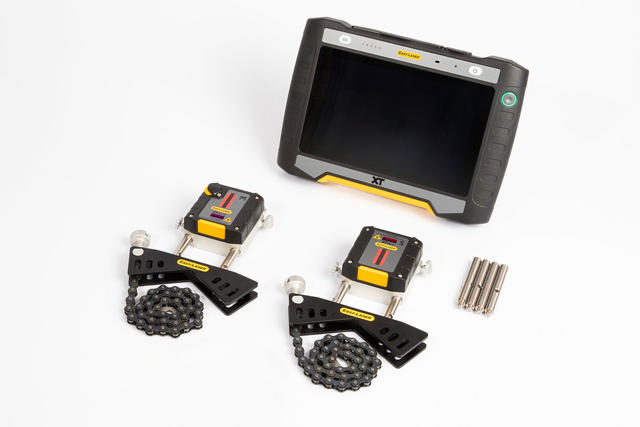

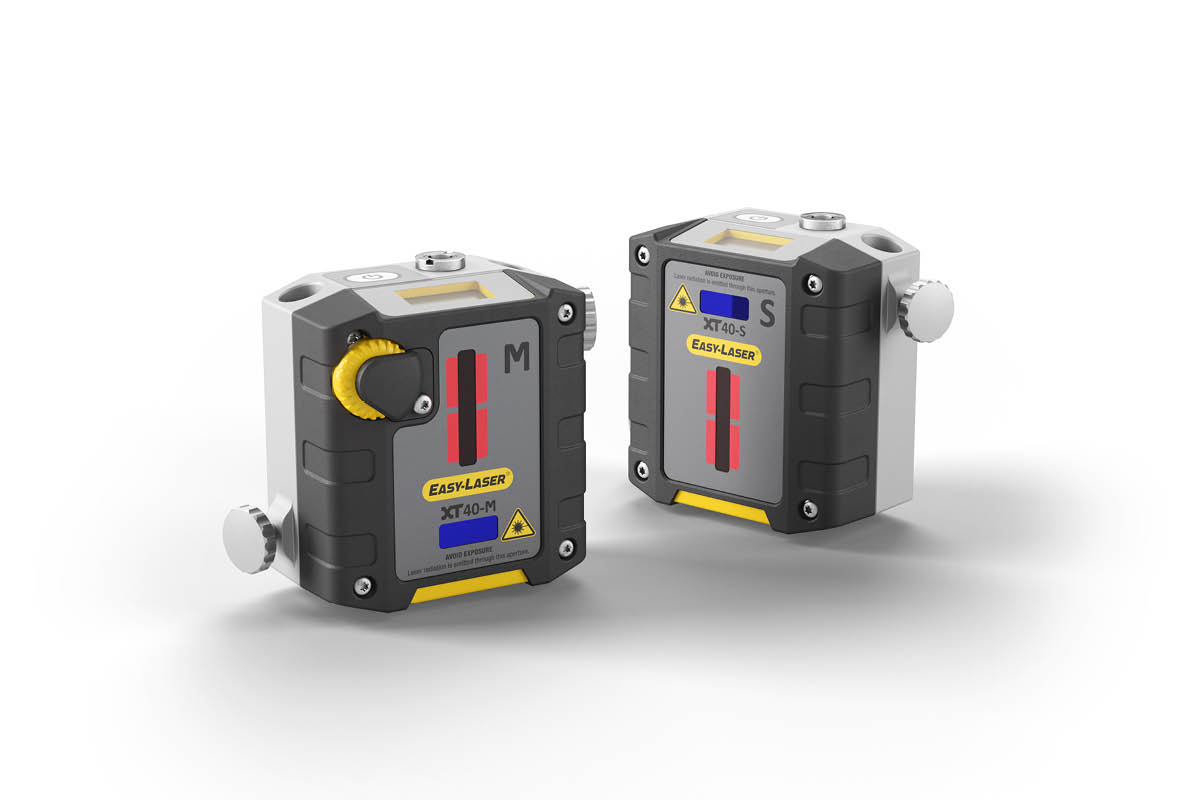

XT40-M / XT40-S Measuring units

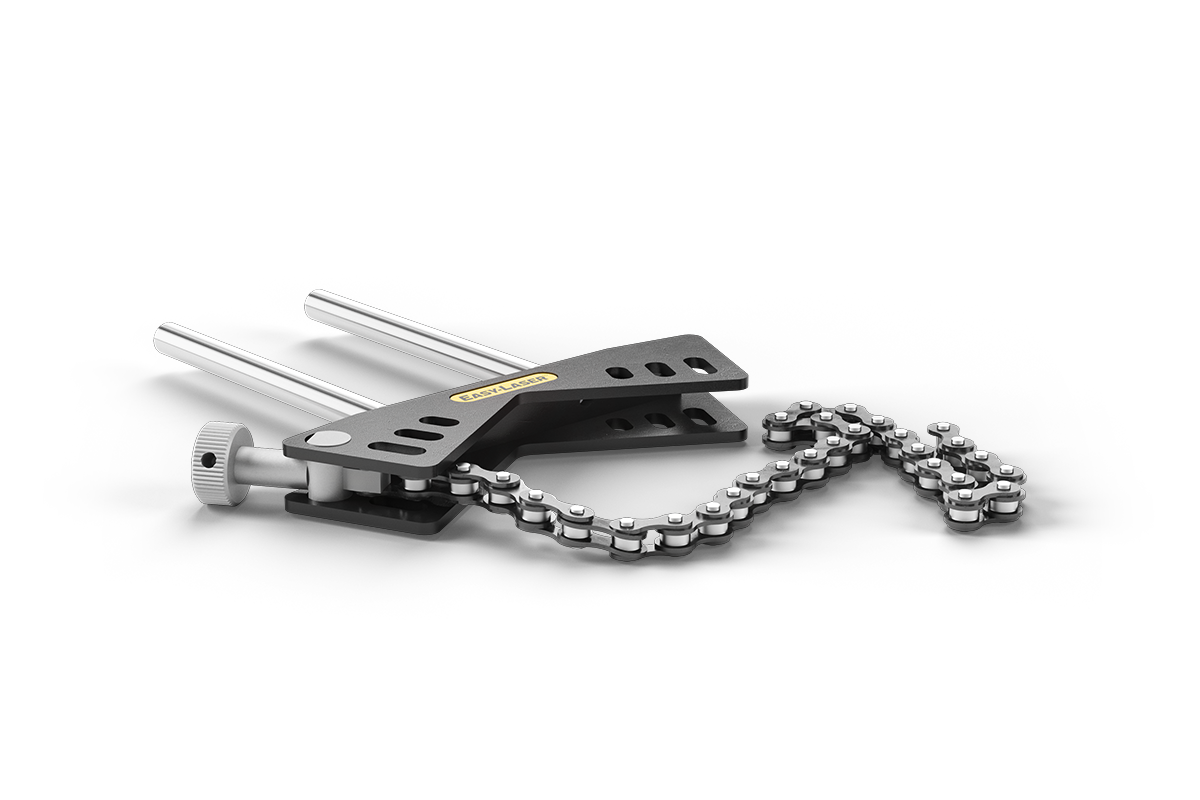

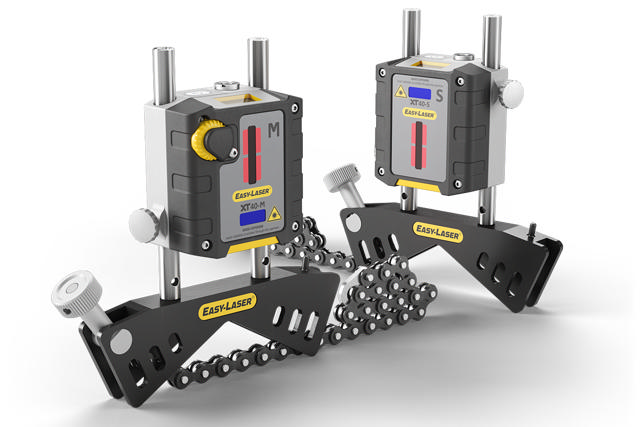

V-bracket with chain and rods
1 Measuring unit XT40-M
1 Measuring unit XT40-S
2 Shaft brackets with chains and rods 120 mm [4.72"]
4 Rods 75 mm [2.95"]
1 Measuring tape 3 m [9.8']
1 Hexagon wrench set
1 Charger (100–240 V AC)
1 DC split cable for charging
1 DC to USB adapter, for charging
1 Quick reference manual
1 Cleaning cloth for optics
1 USB memory with manuals

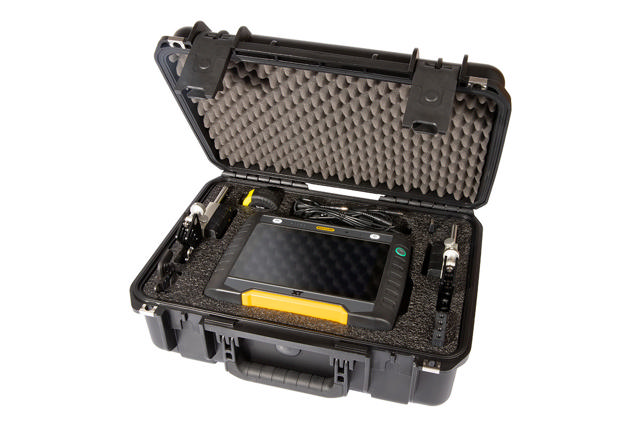

1 Carrying case Medium
Optional:

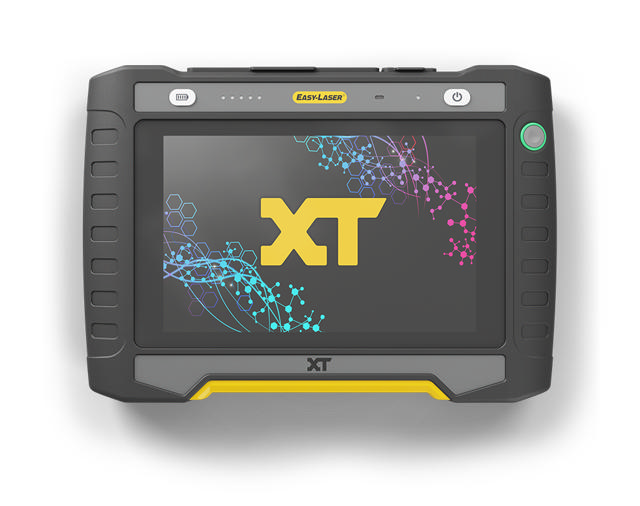

XT12 Display unit, with or without IR camera
XT12 Display unit
Rugged, robust, industrial grade tablet with wear resistant rubberized protective coating.
- IP66 and 67, dust- water- and shockproof.
- Large 8” glove enabled touch-screen.
- 16 hours operating time.
Recommended accessories
Technical data
| Battery type | Heavy duty Li-Ion chargeable |
| Communication | BT wireless technology |
| Dimensions | WxHxD: 76x76.7x39.3 mm [3.0x3.0x1.5”] |
| Electronic inclinometer | 0.1° resolution |
| Environmental protection | IP66/67, designed for outdoor use (pollution deg. 4) |
| Housing material | Anodized aluminium + PC/ABS + TPE |
| Laser Class | Safety class 2 |
| Laser output power | < 1 mW |
| Laser wavelength | 630–680 nm |
| Measurement accuracy | ±5µm ±1% |
| OLED display | 128 x 64 pixels |
| Operating temperature | -10–50 °C [14–122 °F] |
| Operating time (continuous use) | Up to 24 hours |
| Relative humidity | 10–95% |
| Resolution | 0.001 mm [0.05 mils] |
| Storage temperature | -20–50 °C [-4–122 °F] |
| Type of detector | TruePSD 30 mm [1.2”] |
| Type of laser | Diode laser |
| Weight | 245 g [8.6 oz] |
