Shaft alignment in potentially explosive areas
XT550 Shaft EX
Built for safe and precise shaft alignment in potentially explosive environments (Zone 1/21). It has all the programs and functions you need to keep your machines up and running.
- Align the machine
- Check base twist
- Check bearing play
- Check soft foot
- Document and share the results
EX/ATEX compliant measuring units
With the XT550, you can align horizontal and vertical/flange-mounted machines with ease and accuracy – even in hazardous areas. The intrinsically safe design of the measuring units complies with EX/ATEX standards*. The system features soft foot check, tolerance verification to ensure alignment quality, and functions for thermal growth compensation. It also includes a program for checking twist of machine foundation
By adding accessories, the system can also:
- Align cardan shafts
*The XT50 measuring units are EX approved which means they comply with the Essential Health and Safety Requirements relating to the design of products intended for use in potentially explosive atmospheres.
Key strengths of XT550 Shaft EX
Intrinsically safe
The measuring units are certified for use in explosive environments (Zone 1/21).
Dot laser technology
For high accuracy and versatility.
Rugged design
Designed for harsh industrial environments (IP66 and 67).
Automatic documentation
A report is automatically generated in PDF and Excel format.
Multi-platform compatibility
Works with the industrial-grade Easy-Laser display unit or most iOS/Android devices.
Features
The programs below are the most commonly used with this system.
The user interface is intuitive and guide you through the measurement process. It is animated and zooms into the most important things for each step. You can save the measurements of a machine for As found and As left in the same file.
For measurement and alignment of vertically and flange mounted machines.
Build your own machine train with theoretically as many machines as you like. You can pick the reference machine manually, or let the program choose one that will minimize the need for adjustments.
For alignment of cardan/offset mounted machinery. (Requires additional Cardan bracket kit.)
Alignment work begins with a soft foot check. The soft foot check ensures that the machine is resting evenly on all its feet by indicating which foot/feet should be adjusted. This is an important part of securing a reliable alignment. After the soft foot check is complete, you can go directly to the alignment program with all of the machine’s distance values saved.
Program to measure flatness/twist of, for example, machine foundation, machine tables, etc.
Use the M and S measuring units included to measure as with digital dial gauges, but with laser precision and the possibility to document the measurement result. Another application is to check shaft radial play (bearing play).
Measurement points are recorded at fixed points 9, 12 and 3 o’clock. This is the classic three-point method which can be used in most cases. The preferred method for situations where the machine to be aligned is mounted on a moving object, and it is not possible to use the inclinometers (e.g., on ships, cranes, wind turbines etc.).
Ideal method for coupled machines where you manually rotate the shafts to any position. The EasyTurn™ function allows you to begin the measurement process from anywhere on the turn. You can turn the shaft to any three positions with as little as 20° between each position to register the measurement values. An easier-to-use version of the three-point method (see 9–12–3).
Automatic recording of measurement values during continuous sweeping of the shaft. The easiest and quickest way to obtain the alignment status on coupled machines. Hundreds of points are registered. Start recording, rotate, and stop at any angle and you get the results instantly. Quality check of measurement is provided.
Multi point is basically the same as EasyTurn™, but instead you can record multiple points on the sector rotated. This will provide an optimized calculation basis. Perfect for e.g. turbine and sliding bearing applications.
Used when the machines are uncoupled and when the rotation can be difficult to control. Rotate one shaft/unit at a time to pass with the beam over the other (stationary). Repeat alternately until enough measurement points are recorded. You can start and stop anywhere on the turn. Use it for big heavy machinery like gas turbines, wind turbines or gear boxes which can be difficult to rotate to a specific position.
Of the ten billion ball bearings being manufactured every year, nine billion will outlive the machine.
System parts

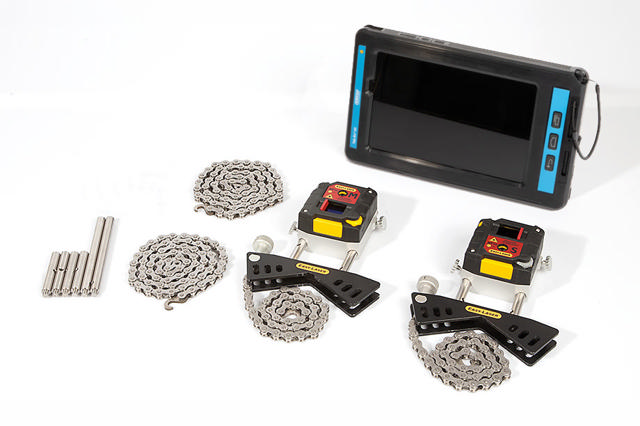

Below are some of the components included the system. Click “A complete system contains” to view the full list.

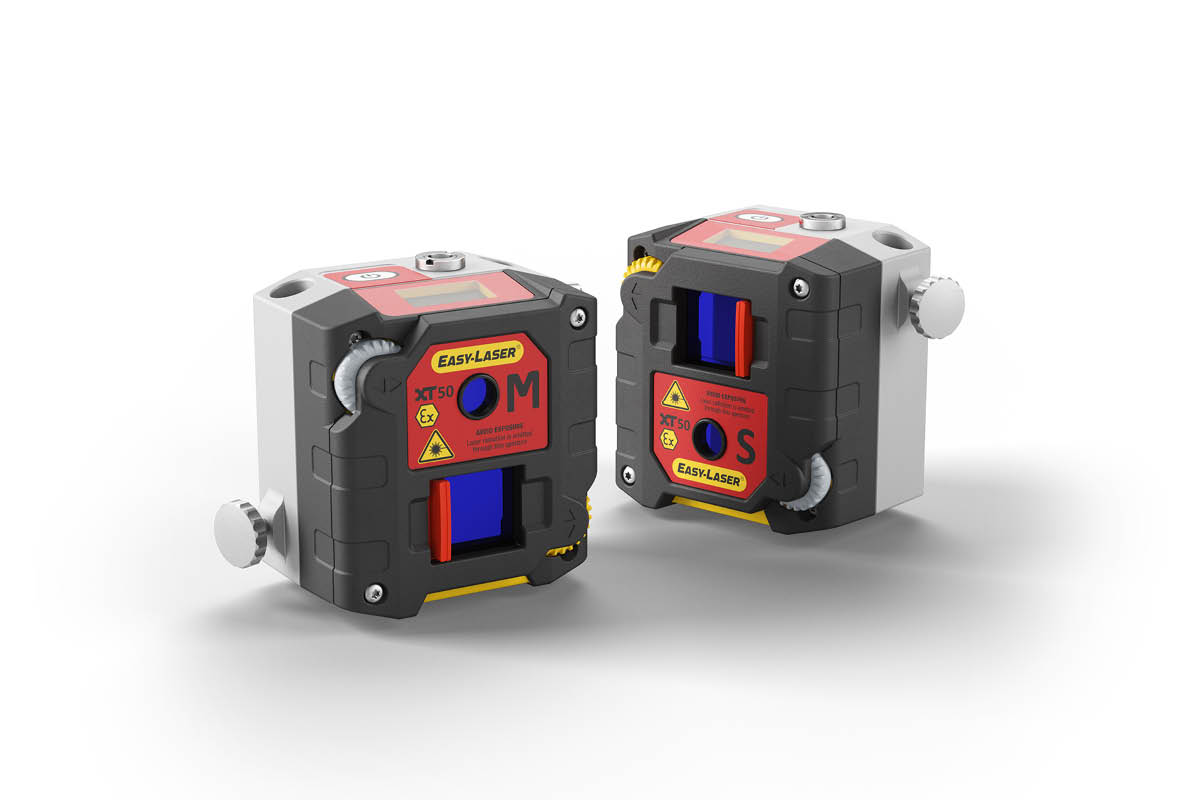

XT50-M / XT50-S Measuring units

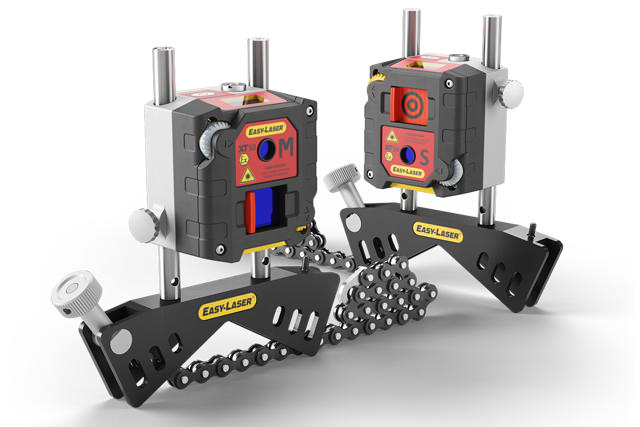

V-bracket with chain and rods
1 Measuring unit XT50-M
1 Measuring unit XT50-S
2 Shaft brackets with chains and rods
4 Rods 60 mm [2.36"]
2 Rods 120 mm [4.72"]
2 Extension chains 900 mm [35.4"]
1 Measuring tape 3 m [9.8']
1 Rod tool
1 Charger (100–240 V AC)
1 DC split cable for charging
1 Quick reference manual
1 Cleaning cloth for optics
1 USB memory with manuals

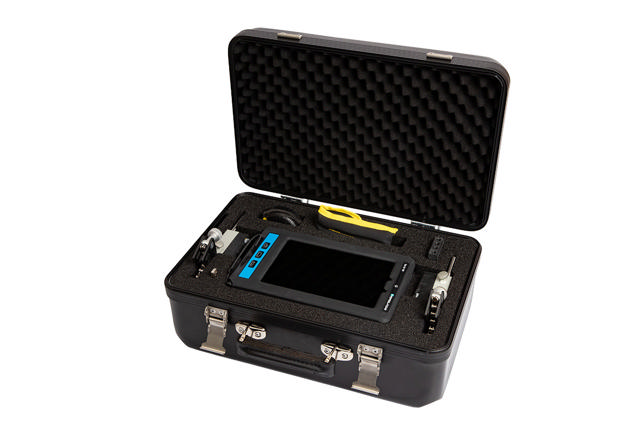

1 Carrying case Ex/ATEX
Optional:
1 Display unit ecom Tab-Ex®
Recommended accessories
Technical data
| Battery type | Heavy duty Li-Ion chargeable |
| Communication | BT wireless technology |
| Dimensions | WxHxD: 76x76.5x50.9 mm [3.0x3.0x2.0"] |
| Electronic inclinometer | 0.1° resolution |
| Environmental protection | IP66/67, designed for outdoor use (pollution deg. 4) |
| EX certificate number | Presafe 17 ATEX 10552X, IECEx PRE 17.0049X |
| EX classification |
II 2 G Ex ib op is IIC T4 Gb, -10°C ≤ Ta ≤ +50°C II 2 D Ex ib op is IIIC T135°C Db, -10°C ≤ Ta ≤ +50°C |
| Housing material | Anodized aluminium + PC/ABS + TPE |
| Laser Class | Safety class 2 |
| Laser output power | < 1 mW |
| Laser wavelength | 630–680 nm |
| Measurement accuracy | ±1µm ±1% |
| Measuring distance | Up to 20 m [66 feet] |
| OLED display | 128 x 64 pixels |
| Operating temperature | -10–50 °C [14–122 °F] |
| Operating time (continuous use) | Up to 20 h |
| Relative humidity | 10–95% |
| Resolution | 0.001 mm [0.05 mils] |
| Storage temperature | -20–50 °C [-4–122 °F] |
| Type of detector | 1 axis TruePSD 20x20 mm [0.79x0.79"] |
| Type of laser | Diode laser |
| Weight | 316 g [11.1 oz] |
