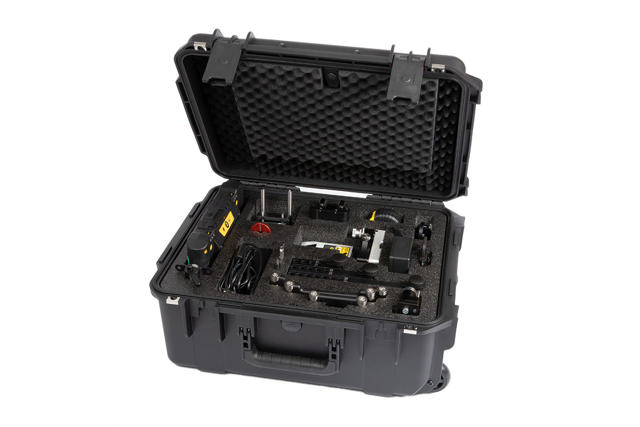

XT950 bore alignment system
XT9 detector with brackets
XT950 bore alignment system
XT9 detector with brackets

Easy-Laser® XT950 - Bore alignment

High precision bore alignment

Measure the straightness of bore center lines, bearing journals, and other cylindrical objects with the Easy-Laser® XT950 Bore alignment system.

The Easy-Laser® XT950 Bore alignment system is used for the precise alignment of bore center lines, bearing journals, and cylindrical objects. Designed for applications such as engines, compressors and gearboxes, it accurately measures bore sizes between 80 and 500 mm (3.15–19.68 inches).

Flexible mounting options

Different brackets makes the system highly versatile, and makes it easy to mount the detector in bores of varying widths. The magnetic feet hold the detector perfectly for stable and precise measurements.

Intuitive user experience

The Bore Center program in the XT app (coming soon) guides the user through the entire measurement process, contributing to simple operation. The system automatically calculates the bearing journals' positions in relation to each other horizontally and vertically. You can evaluate the results with different best-fit calculation methods, analyze different choices of reference points, and set tolerance values.

High precision over long distances

Each component is crafted for maximum accuracy and stability, and ensures reliability with a resolution of 0.001 mm (0.05 mils) over distances up to 40 m (130 feet). This makes the system suitable for both manufacturing environments and field services.

Download

If you don't have access to Google Play:

XT Alignment app for Android
(Version 9.2.0, 310MB)

Measurement programs

The featured programs below are the most common used with this system. Please click here for a complete overview of possibilities.
*=accessories needed

XT Bore center program
Bore center

Use this program to measure the straightness of bore center line, bearing journals and other cylindrical objects. Measure 3–50 points at each position (Multipoint). If required, you can set tolerances. The result can be displayed as Best-fit calculated. Individual points can be remeasured.

Values - Extended applications

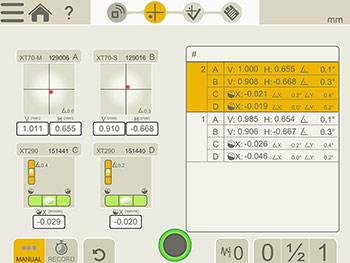

The Values program can be used for most geometrical measurements, with suitable units and brackets. Perfect for the complete machine installation phase. The Values interface can show up to four units at the same time; both measuring units and digital levels, for example. Automatic recording possible (set the interval and duration). You can make individual notes for each measurement point.

Smart functions

Measurement value filter
Templates
Multiple languages
AV connector
Sign reports electronically
Read QR and bar codes
Continue session

Documentation

Save to USB memory
Save to built-in memory
Make a printout
Share your reports
Add pictures
Versatile reports

Display unit XT12 (optional)

Rugged, robust, industrial grade tablet with wear resistant rubberized protective coating. IP66 and 67, dust- water- and shockproof. As standard a 13 MP camera for documentation is built-in, but you can also choose a model with IR camera added.

Glove enabled touch-screen

A large 8", glove-enabled touch-screen makes the information clear and the app easy to use. You can check battery status also when the unit is turned off .
Heavy-duty rechargeable battery for very long operatong times; up to 16 hours. Fastening points for shoulder strap (included).

Features

  • Robust, rubber coated design, IP66/67.
  • Large 8” glove enabled touch-screen.
  • IR Camera for thermal images (optional).
  • 16 hours operating time.
  1. Ergonomic, rubber coated housing
  2. Battery status-check button
  3. Battery status indicators
  4. Dust cover and protection on for connectors (Note: connectors are dust- and waterproof)
  5. Proximity sensor
  6. Display brightness sensor
  7. Large and clear 8" glove-enabled touch-screen
  8. Enter button
  1. Charger
  2. USB C / USB A / AV connector (HDMI)
  3. Fastening points for shoulder strap (x2)
  4. IR Camera (optional)
  5. 13 Mp Camera
  6. LED Light
  7. Loudspeakers

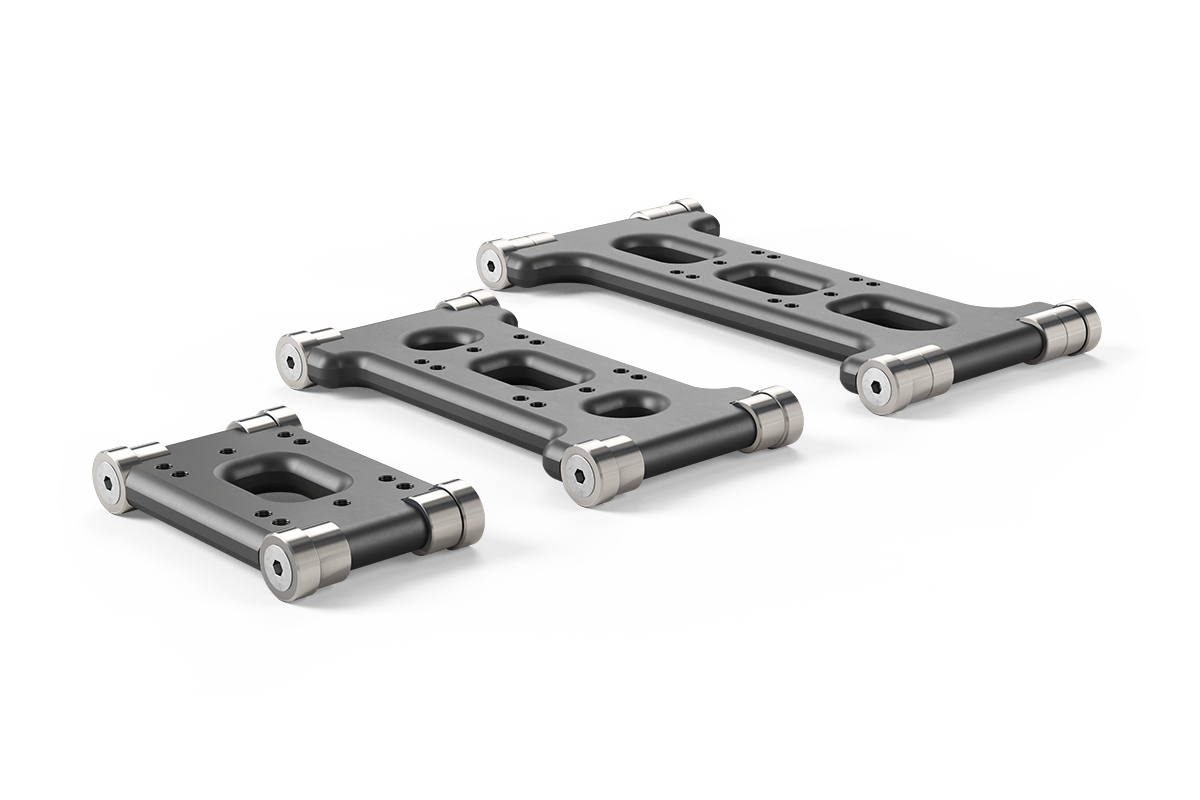

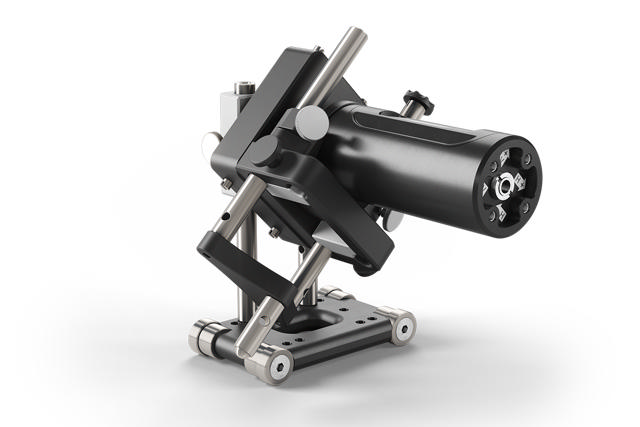

Detector XT9 with slide brackets (3 sizes)

Set of three slide brackets with extendable rods for different bore diameters.

  1. Slideable target
  2. Extendable rods
  3. Rod adapter
  4. Magnetic feet
  5. Slidable bracket

D75 Laser transmitter with arms

The laser transmitters’ rigid design assures highest measurement accuracy. The bracket has three sets of adjustable arms with magnets to fit different diameters. The arms can be mounted with 120° incremental or all three downwards, depending on if it will be mounted in a full bore or half bore. The transmitter can be mounted to point the laser beam either away from, or through, the offset hub.

Fine adjustment of the laser beam in horizontal and vertical direction is made very easy with the offset hub.

  1. Magnet attachment
  2. Support pin
  3. Adjustable arms
  4. Offset hub
  5. Laser aperture

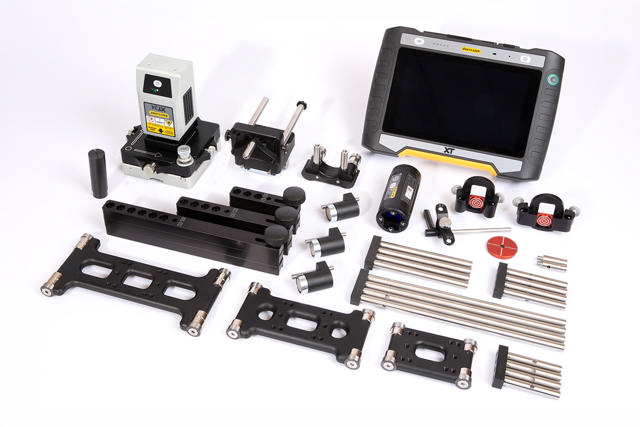

A complete system contains

  • 1 Laser transmitter D75
  • 1 Detector XT9
  • 1 Offset hub with counterlock for D75
  • 1 Arm kit with magnets
  • 1 Set of rods 4x75 mm
  • 1 Set of rods 4x120 mm
  • 1 Slide bracket Small
  • 1 Slide bracket Medium
  • 1 Slide bracket Large
  • 1 Bracket with rotatable bore probe, XT
  • 1 Target for detector rough alignment
  • 1 Axial support for slide brackets
  • 1 Rod adapter with built-in target C–C 56 mm
  • 1 Rod adapter with built-in target C–C 40 mm
  • 1 Slide bracket, 25 mm width
  • 1 Battery charger (100–240 V AC)
  • 1 USB memory stick with documentation
  • 1 Measuring tape 5 m
  • 1 Hexagon wrench set
  • 1 DC to USB adapter, for charging
  • 1 DC split cable for charging
  • 1 Cleaning cloth for optics
  • 1 Carrying case XT Linebore WxHxD: 546x432x244 mm [21.5x17.0x9.6"]

Optional:

  • XT12 Display unit, with or without IR camera

Examples of accessories for XT950:

  • 12-0553    Bore bracket adapter plate
  • 12-0314    Detector arms Linebore
  • 12-0187    Magnetic bracket for D75
  • 12-0282    Set of extension arms
  • 12-0580    Axial extension arms
  • 12-0990    Adjustable magnet for offset hub arms

Display Unit

Name
XT12
Type of display/size
8" LCD capacitive multi-touch colour display
Internal battery (fixed)
Heavy duty Li Ion chargeable
Connections
USB A, USB C, Charger, AV
Operating temperature
-10–50 °C
Storage temperature
-20–50 °C
Communication
Wireless technology, WiFi
Relative humidity
10–95%
Loundspeakers
Built-in, rear-facing
Charger
15 V
Camera
13 Mp autofocus, with LED diode
IR camera (optional)
FLIR LEPTON® (0–400 °C, 32–752 °F)
Help functions
Built-in manual
Environmental protection
IP class 66 and 67. Designed for outdoor use (pollution degree 4)
Housing material
PC/TPE or PC/TPU
Dimensions
WxHxD: 269.0x190.0x49.4 mm [10.59x7.48x1.95"]
Weight (without batteries)
1400 g [49.4 oz]
Operating time
Up to 16 h continuously

Laser Transmitter

Name
D75
Part No.
12-0075
Type of laser
Diode laser
Laser wavelength
630–680 nm, visible red light
Laser Safety Class
Class 2
Adjustable modulation
5, 32 KH
Output
< 1 mW
Beam diameter
6 mm [1/4"] at aperture
Working area, range
40 m [130']
Type of battery
1 x R14 (C)
Operating time/battery
approx. 15 h
Laser adjustment
D75: 2 ways ±2° (± 35 mm/m)
Housing material
Anodized aluminium
Dimensions
WxHxD: 60x60x120 mm [2.36x2.36x4.72"]
Weight
780 g [27.5 oz]

Detectors

Name
XT9
Part No.
12-1350
Communication
BT wireless technology
Type of detector
2 axis PSD 20x20 mm [0.78" sq]
Resolution
0.001 mm [0.05 mils]
Measurement accuracy
±1µm ±1%
Inclinometers
0.1° resolution
Thermal sensor
± 1° C accuracy
Environmental protection
IP class 66 and 67
Internal battery
Heavy duty Li Ion rechargeable
Operating temperature
-10–50 °C [14–122 °F]
Housing material
Anodized aluminium
Dimensions
Diameter 44 mm [1.73"], length 100 mm [3.93"]
Weight
194 g [6.8 oz]

Product information

Product Catalogue rev. 24
Product Overview
