Accessories for shaft alignment systems

Here you find a selection of accessories available for our range of shaft alignment systems. For a complete overview, please see the product catalogue.

Shows for

Bracketing

Cardan bracket set
Part No.: 12-1151
System: E
Description:
For alignment of cardan/offset mounted machines. Offset range 0–900 mm.
DM bracket
DM bracket with XT70 measuring unit
DM bracket parts
DM bracket
Part No.: 12-1130
System: E
Description:
For measuring dynamic movements. Complete kit, delivered in plastic case.
Magnet base
Part No.: 12-0013
System: D
Description:
Versatile magnet base with On/Off function and many optional rod mounting possibilities. For use with XT-series offset bracket 12-1008 is also needed.
Magnet base with turnable head
Part No.: 12-0045
System: D
Description:
Versatile magnet base with On/Off function and 360° turnable head with two rod mounting possibilities.
Magnet base with turnable head
Part No.: 12-1133
System: D
Description:
Versatile magnet base with On/Off function and 360° turnable head with two rod mounting possibilities, for both C–C40 mm and C–C56 mm. It has a screw and washer with which you can lock the top rotation, and therefore still use it for jobs like shaft alignment.
Magnetic bracket
Part No.: 12-1147
System: D
Description:

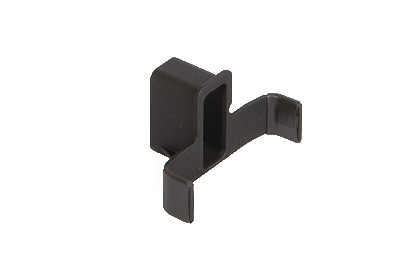

For axial mounting on flanges or shafts. With M6 screws working as radial supports, and four super magnets.
Offset bracket
Part No.: 12-1008
System: D
Description:
Allows axial displacement between measuring units to be able to rotate past projecting machine parts. Also works as a converter between rod C-C 40 mm (D and E-series) and C-C 56 mm (XT series).
Rods, 120 mm [4.72"]
Part No.: 12-0324
System: D
Description:
Stainless steel. Diameter 10 mm. Extendable. Plastic holder included.
Rods, 240 mm [9.44"]
Part No.: 12-0060
System: D
Description:
Stainless steel. Diameter 10 mm. Extendable. Plastic holder included.
Rods, 60 mm [2.36"]
Part No.: 12-0059
System: D
Description:
Stainless steel. Diameter 10 mm. Extendable. Plastic holder included.
Rods, 75 mm [2.95"]
Part No.: 12-1161
System: D
Description:
Stainless steel. Diameter 10 mm. Extendable. Plastic holder included.
Sliding bracket
Part No.: 12-1010
System: D
Description:
For shaft alignment. The spherical feet can be placed in two different positions for adaption to small or large shaft diameters. Used when the shafts cannot be rotated. Mounted with standard chains (not included).
Thin chain bracket
Part No.: 12-1012
System: D
Description:
For use for example when the space between coupling and machine is limited. Width: 12 mm [0.5”].

Display units

Display unit ecom Tab-Ex®
Part No.: 12-1086
System: XT
Description:
Wireless display unit for Generation XT, especially the XT50-M/S Ex/ATEX approved shaft alignment measuring units. Rugged design, with glove enabled touch screen.
Display unit XT11
Part No.: 12-0961
System: XT
Description:
Wireless display unit for Generation XT. Rugged design, shock proof, IP66 and IP67. Glove enabled touch screen. Water and dust proof connectors: USB A, USB B, AV, Charger.

Laser transmitters

Laser transmitter D22 Swivel
Part No.: 12-0022
System: D
Description:
Laser transmitter D22 can be used to measure flatness, straightness, squareness and parallelism. The laser beam can sweep 360° with a measurement distance of up to 40 metres [130´] in radius. The laser beam can be angled 90° to the sweep, within 0.01 mm/m [0.01 mils/inch]. Tilt table included.

Measuring units

Measuring unit ELM40, PSD 30 mm, inclinometer
Part No.: 12-0776
System: E
Description:
Laser diode and PSD detector in one housing. Built-in wireless communication. Battery status indicator. Built-in electronic 360° inclinometer. For shaft alignment. PSD 30 mm [1.18”].
Measuring unit ELS40, PSD 30 mm, inclinometer
Part No.: 12-0777
System: E
Description:
Laser diode and PSD detector in one housing. Built-in wireless communication. Battery status indicator. Built-in electronic 360° inclinometer. For shaft alignment. PSD 30 mm [1.18”].
Measuring unit EM, PSD 20×20 mm, inclinometer
Part No.: 12-0434
System: E
Description:
Laser diode and PSD detector in one housing. Built-in electronic 360° inclinometer. Mainly for shaft alignment. PSD 20x20 mm [0.79”x0.79”].
Measuring unit ES, PSD 20×20 mm, inclinometer
Part No.: 12-0433
System: E
Description:
Laser diode and PSD detector in one housing. Built-in electronic 360° inclinometer. Mainly for shaft alignment. PSD 20x20 mm [0.79”x0.79”].
Measuring unit XT40-M, PSD 30 mm
Part No.: 12-0943
System: XT
Description:
Laser diode and PSD detector in one housing. Built-in wireless communication. OLED display shows battery status and angle of the unit on shaft. Built-in electronic 360° inclinometer. For shaft alignment. PSD 30 mm [1.18”].
Measuring unit XT40-S, PSD 30 mm
Part No.: 12-0944
System: XT
Description:
Laser diode and PSD detector in one housing. Built-in wireless communication. OLED display shows battery status and angle of the unit on shaft. Built-in electronic 360° inclinometer. For shaft alignment. PSD 30 mm [1.18”].
Measuring unit XT50-M, EX/ATEX, PSD 20×20 mm
Part No.: 12-1026
System: XT
Description:
Laser diode and PSD detector in one housing. Built-in wireless communication. OLED display shows battery status and angle of the unit on shaft. Built-in electronic 360° inclinometer. For shaft alignment. 1 axis PSD 20x20 mm [0.79x0.79”].
Measuring unit XT50-S, PSD 20×20 mm
Part No.: 12-1027
System: XT
Description:
Laser diode and PSD detector in one housing. Built-in wireless communication. OLED display shows battery status and angle of the unit on shaft. Built-in electronic 360° inclinometer. For shaft alignment. 1 axis PSD 20x20 mm [0.79x0.79”].
Measuring unit XT60-M, PSD 20×20 mm
Part No.: 12-1028
System: XT
Description:
Laser diode and PSD detector in one housing. Built-in wireless communication. OLED display shows battery status and angle of the unit on shaft. Built-in electronic 360° inclinometer. For shaft alignment. PSD 20x20 mm.
Measuring unit XT60-S, PSD 20×20 mm
Part No.: 12-1029
System: XT
Description:
Laser diode and PSD detector in one housing. Built-in wireless communication. OLED display shows battery status and angle of the unit on shaft. Built-in electronic 360° inclinometer. For shaft alignment. PSD 20x20 mm.
Measuring unit XT70-M
Measuring unit XT70-M, PSD 20×20 mm, 2-axis
Part No.: 12-1045
System: XT
Description:
Laser diode and PSD detector in one housing. Built-in wireless communication. OLED display shows battery status and angle of the unit on shaft. Built-in electronic 360° inclinometer. For shaft alignment. PSD 20x20 mm.
Measuring unit XT70-S
Measuring unit XT70-S, PSD 20×20 mm, 2-axis
Part No.: 12-1046
System: XT
Description:
Laser diode and PSD detector in one housing. Built-in wireless communication. OLED display shows battery status and angle of the unit on shaft. Built-in electronic 360° inclinometer. For shaft alignment. PSD 20x20 mm.

Miscellaneous

Extension chain, set
Part No.: 12-1060
System: E
Description:
For standard chains. For shaft diameters 150–450 mm [5.9–17.7”].
Printer for E-series
Part No.: 03-1004
System: E
Description:
Battery operated thermal printer. With USB cable and 110-220V charger. For connection to all systems with E-series display units.
QR code sticker
Part No.: 04-0307
System: XT
Description:
To stick on aligned machines.
Sun visor for XT40
Part No.: 12-1205
System: XT
Description:
To use in very sunny conditions when light causes unstable values. Fits measuring units XT40-M/S.
