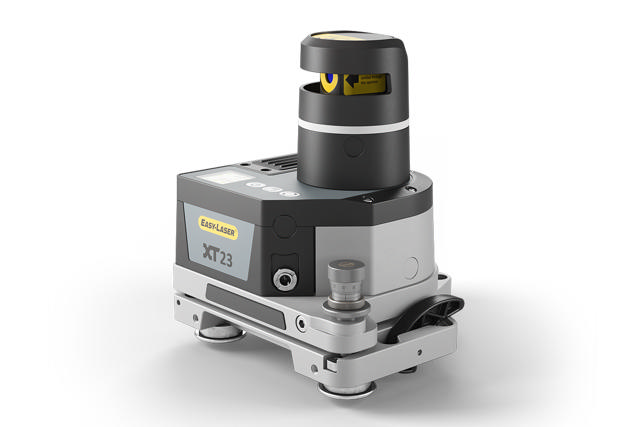

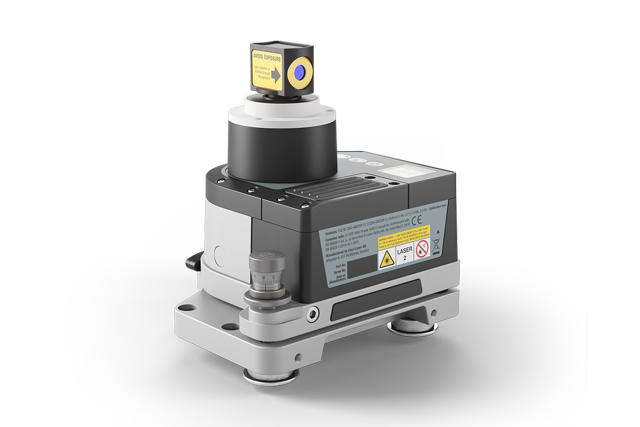

XT23 Laser transmitter
Part No: 12-1274
For measurement of flatness and level. The laser beam can sweep 360° with a measurement distance of up to 20 meters [66’] in radius.
- Spin laser (motorized laser head)
- 360° sweep
- Horizontal + vertical digital levels
- Measurement distance of up to 20 meters [66’] in radius
- Operating time up to 16 hours
Quick and easy with spin laser
This is a transmitter perfect for quick measurement of flatness on both small and very large objects/machines. You can also use the transmitter for levelling using the built-in electronic levels together with the Values program.
The transmitter is used together with detector XT7. The motorized laser head rotates continuously, creating a laser plane over the surface. The measurement procedure is quick and straightforward – simply move the detector to each measurement position and record the value.
Product details
A. Detachable top cover. B. On/Off, Change display view, Start/Stop spin. C. Charger connection D. Levelling knob E. Release lever. Also for dampening the strong magnet force when placing the transmitter on the surface. F. Fastening of separate magnet bases (x2). G. Solid aluminium core ensures rigid design. H. M6 thread (x4) for safety strap screw and other accessories/adaptations. I. Countersunk profile for fingers, for better grip when lifting the transmitter. J. Super magnets (×3). K. Rubberized grip surface. L. Square design makes it easy to position in a corner of an object, it also clearly indicates tilting angles and simplifies calibration. M. Clear TFT colour display. N. Spinning laser head.
