High quality,
pre-cut shims

Pre-cut, high-quality, stainless steel shims make the alignment of your machines safer and easier. Choose one of our shim cases so that you always have the right shims close to hand.

  • Shims of all sizes – easy to use
  • Shims marked with thickness – quickly identifiable
  • Small, handy shim cases – easy to transport
  • Burr-free shims – safe to handle

High-quality stainless steel: EN100272 1.43105
Stiffness: RM 12001800Mp
Tolerance: DIN 17222/75

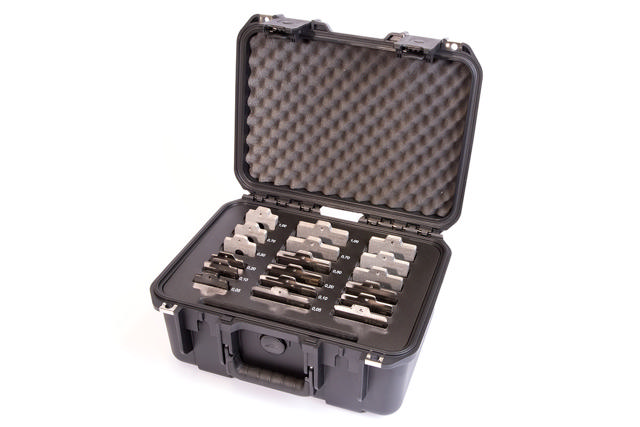

Complete shim cases

For versatile transportation and easy viewing we offer complete shim cases with the following shims:

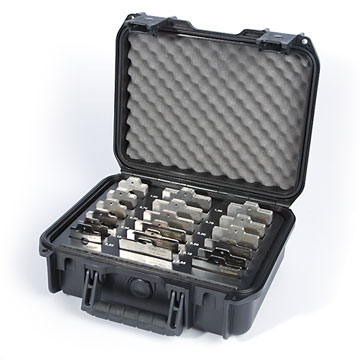

Case 1. The ideal light case for service technicians (180 shims):

  • Shim types 1,2 and 3
  • 10 of each thickness: 0.05/0.10/0.20/0.50/0.70/1.00
  • Case weight (complete): 4.4 kg
  • Case dimensions: 300×250×140 mm

Part No. 12-0258

Case 2. For big consumers (360 shims):

  • Shim types 1, 2 and 3
  • 20 of each thickness: 0.05/0.10/0.20/0.50/0.70/1.00
  • Case weight (complete): 7.0 kg
  • Case dimensions: 300×250×140 mm

Part No. 12-0259

Case 3. Add shims of your choice (see list below):

  • Shim types 1, 2, 3 and 4 in dimensions of your choice.
  • Case dimensions: 460×350×175 mm

Part No. 12-0743 (NOTE Only case with padding.)

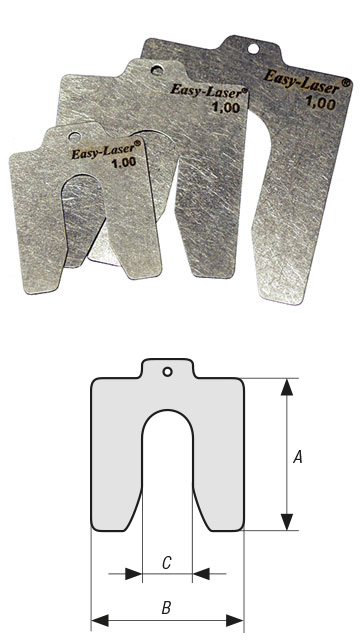

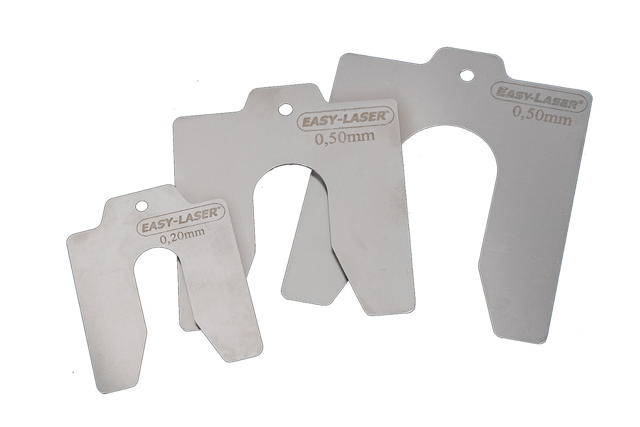

Loose shims

The shims are available in blister packs. (NB! shims marked (*) are not included in cases 1 and 2).

Shim thickness (mm): 0.05 / 0.10 / 0.20 / 0.40* / 0.50 / 0.70 / 1.00 / 2.00* / 3.00*

Type 1

A = 55 mm
B = 50 mm
C = 15 mm

Type 2

A = 75 mm
B = 70 mm
C = 23 mm

Type 3

A = 90 mm
B = 80 mm
C = 32 mm

Type 4*

A = 125 mm
B = 105 mm
C = 44 mm

Type 5*

A = 200 mm
B = 200 mm
C = 85 mm
