Fast and precise flange flatness measurement

Geometric measurement

XT915 Flange flatness

Measure flatness of flanges quickly and accurately, with results available directly after measurement.

Optimized for flange flatness measurements
Fast measurement with spinning laser

Made for efficient flange measurement

The Easy-Laser® XT915 Flatness measurement system is designed primarily for measuring flanges, such as wind tower flanges and slewing bearings. It can also be used for other types of flatness measurements.

XT915 is particularly suitable for wind tower manufacturers looking to speed up production while maintaining precise measurements. Complete documentation is provided as part of the process.

Its predecessor, the Easy-Laser E915, has been used for many years by major wind tower manufacturers worldwide.

Fast measurement with spinning laser

The XT21 laser transmitter has a motorized laser head that rotates continuously to create a laser plane over the measurement surface. You can measure at distances of up to 12 m [40'].

The three rough alignment targets make setup straightforward. Once the transmitter is ready for measurement, simply move the detector to each measurement position and record the value. The Flange flatness program clearly guides you through every step of the measurement.

Designed for accurate positioning

The included flatness bracket is operated with one hand for a quick and efficient measurement procedure. Its detector probe provides more precise positioning of the measurement point compared with a standard magnet base.

If you need even higher precision, longer measurement distances or additional geometrical measurement capabilities, consider the XT920 Geometrical system.

Key strengths of XT915 Flange flatness

High precision

Precision laser transmitters and detectors provide accurate and reliable measurements for demanding industrial applications.

Fast to operate

Flatness bracket designed for speed and ease of use when measuring many points continuously.

Long operating times

Even the toughest jobs will be finished on time with no interruptions.

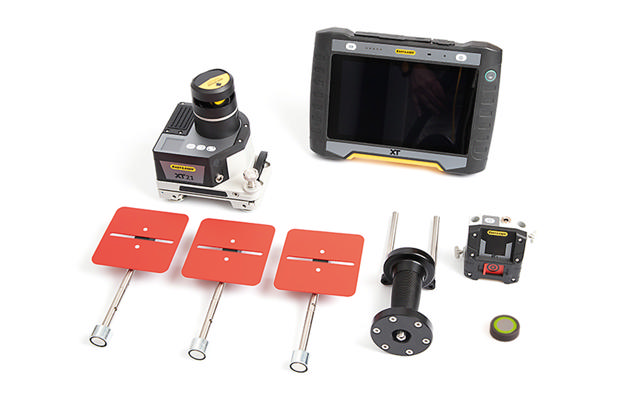

System parts

Below are some of the components included with or selectable for the system. Click “A complete system contains” to view the full list and to see which components are included as standard.

XT7 Detector

XT21 Laser transmitter

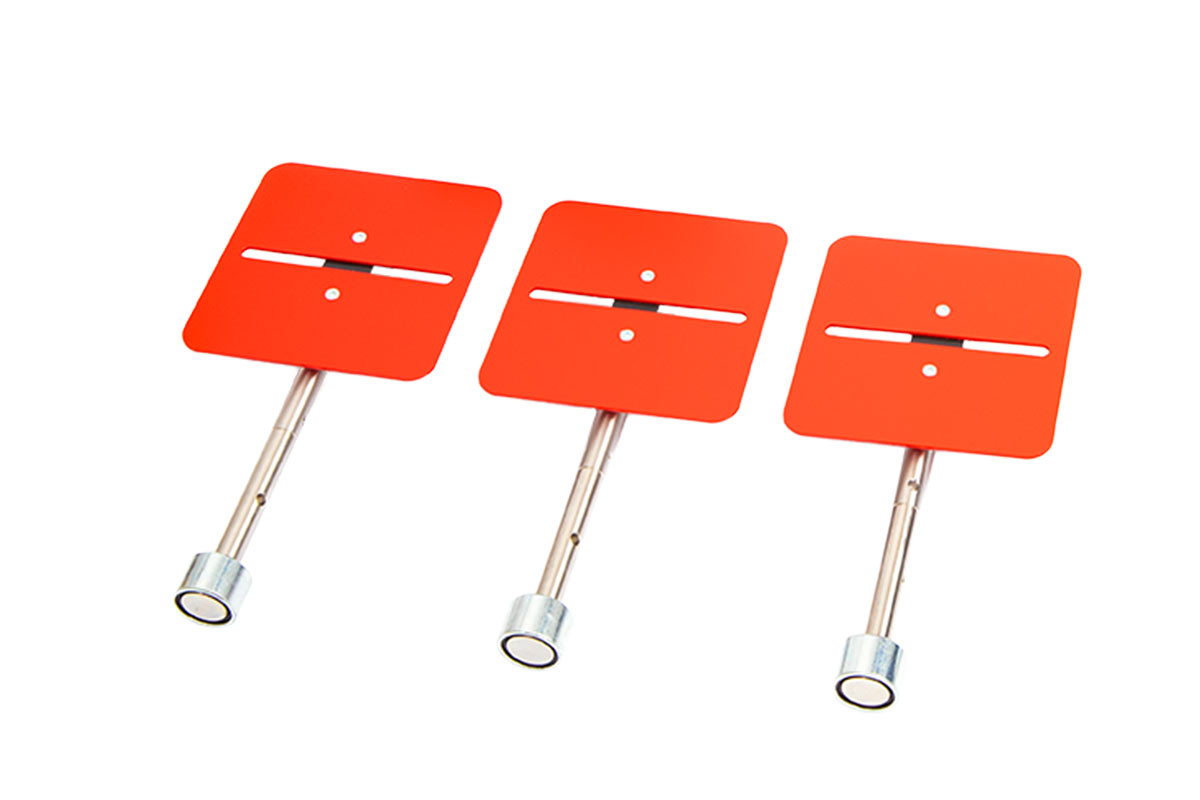

Targets 100x100 mm

Flatness bracket

A complete system contains

1 Detector XT7

1 Remote control

1 Laser transmitter XT21

3 Target 100x100 mm

1 XT Flatness bracket

1 Remote control

1 Measuring tape 5 m [16.4']

1 Charger (100–240 V AC)

1 DC split cable for charging

1 DC to USB adapter, for charging

1 Cleaning cloth for optics

1 USB memory stick with manuals

1 Hexagon wrench set

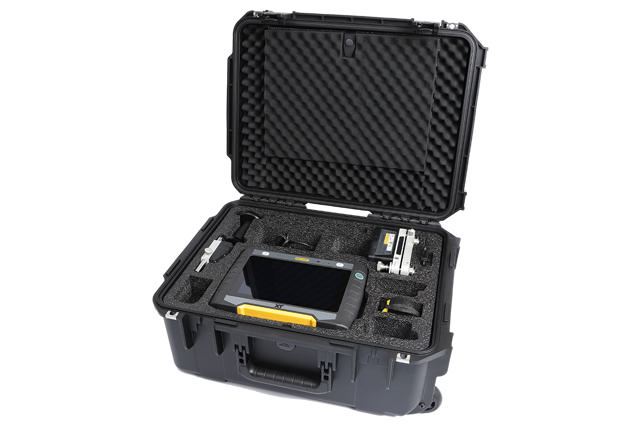

1 Carrying case with wheels

XT12 Display unit

Rugged, robust, industrial grade tablet with wear resistant rubberized protective coating.

IP66 and 67, dust- water- and shockproof.
Large 8” glove enabled touch-screen.
16 hours operating time.
