More possibilities with dot laser

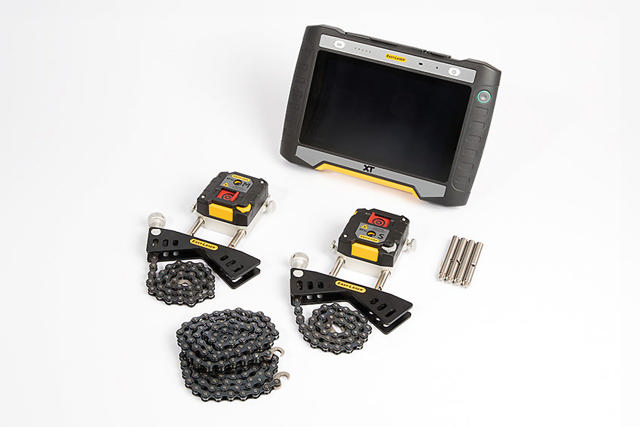

XT660 Shaft
The XT660 system offers highly accurate shaft alignment using dot laser technology. With its rugged design and intuitive app, you get fast, hassle-free alignment even in tough conditions.
- Align the machine
- Check base twist
- Check bearing play
- Check soft foot
- Document and share the results
For all important steps of machine installation and maintenance
With the XT660, you can align horizontal, vertical/flange-mounted machines and machine trains with precision and ease. It also features soft foot check, thermal growth compensation, tolerance verification, and a twist measurement program for quick and easy base flatness checks.
By adding accessories, the system can also:
- Align cardan shafts
Key strengths of XT660 Shaft
Dot laser technology
For high accuracy and versatility.
Rugged design
Designed for harsh industrial environments (IP66 and 67).
Long operating times
Measuring units run up to 24 hours continuously.
Automatic documentation
A report is automatically generated in PDF and Excel format.
Multi-platform compatibility
Works with the industrial-grade Easy-Laser display unit or most iOS/Android devices.
Features
The programs below are the most commonly used with this system.
The user interface is intuitive and guide you through the measurement process. It is animated and zooms into the most important things for each step. You can save the measurements of a machine for As found and As left in the same file.
For measurement and alignment of vertically and flange mounted machines.

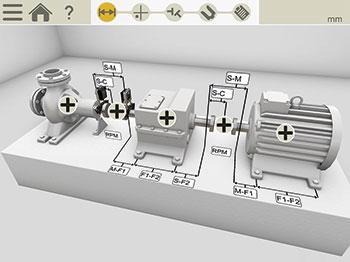

For alignment of machine trains with three machines. You can pick the reference machine manually, or let the program choose one that will minimize the need for adjustments.

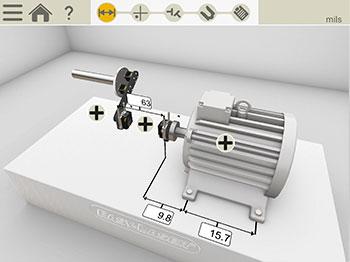

For alignment of cardan/offset mounted machinery. (Requires additional Cardan bracket kit.)
Alignment work begins with a soft foot check. The soft foot check ensures that the machine is resting evenly on all its feet by indicating which foot/feet should be adjusted. This is an important part of securing a reliable alignment. After the soft foot check is complete, you can go directly to the alignment program with all of the machine’s distance values saved.

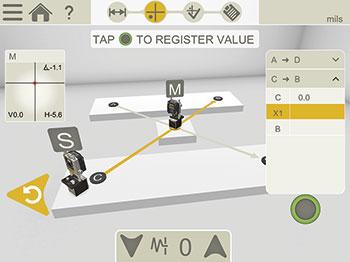

Program to measure flatness/twist of, for example, machine foundation, machine tables, etc.
Use the M and S measuring units included to measure as with digital dial gauges, but with laser precision and the possibility to document the measurement result. Another application is to check shaft radial play (bearing play).
Measurement points are recorded at fixed points 9, 12 and 3 o’clock. This is the classic three-point method which can be used in most cases. The preferred method for situations where the machine to be aligned is mounted on a moving object, and it is not possible to use the inclinometers (e.g., on ships, cranes, wind turbines etc.).
Ideal method for coupled machines where you manually rotate the shafts to any position. The EasyTurn™ function allows you to begin the measurement process from anywhere on the turn. You can turn the shaft to any three positions with as little as 20° between each position to register the measurement values. An easier-to-use version of the three-point method (see 9–12–3).
Automatic recording of measurement values during continuous sweeping of the shaft. The easiest and quickest way to obtain the alignment status on coupled machines. Hundreds of points are registered. Start recording, rotate, and stop at any angle and you get the results instantly. Quality check of measurement is provided.
Multi point is basically the same as EasyTurn™, but instead you can record multiple points on the sector rotated. This will provide an optimized calculation basis. Perfect for e.g. turbine and sliding bearing applications.
Used when the machines are uncoupled and when the rotation can be difficult to control. Rotate one shaft/unit at a time to pass with the beam over the other (stationary). Repeat alternately until enough measurement points are recorded. You can start and stop anywhere on the turn. Use it for big heavy machinery like gas turbines, wind turbines or gear boxes which can be difficult to rotate to a specific position.
“The reason I prefer Easy-Laser is the flexibility where I can pick and choose parts to create my ideal setup. I have one display unit which communicates with all the products. This way I just need to invest in what I need.
System parts
Below are some of the components included the system. Click “A complete system contains” to view the full list.

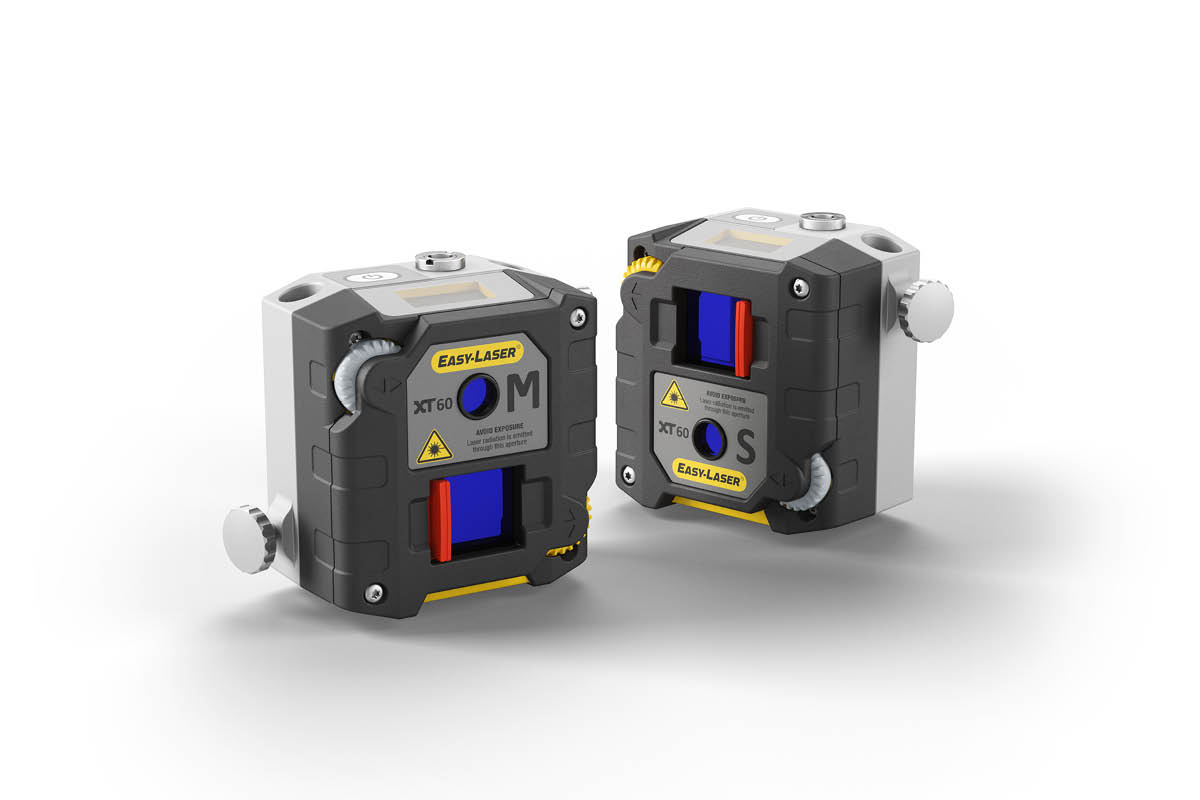

XT60-M / XT60-S Measuring units

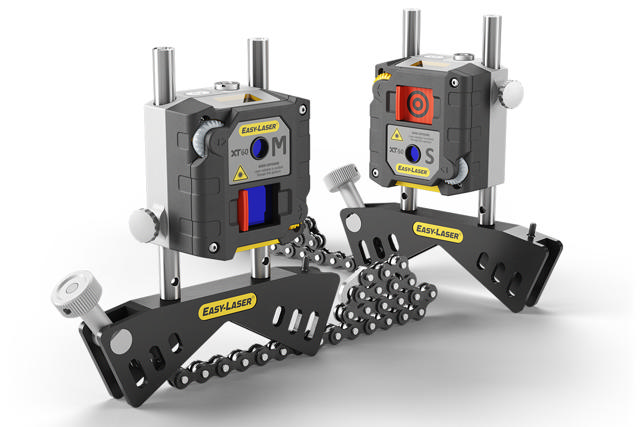

V-bracket with chain and rods
1 Measuring unit XT60-M
1 Measuring unit XT60-S
2 Shaft brackets with chains and rods 120 mm [4.72"]
4 Rods 75 mm [2.95"]
2 Extension chain 900 mm [35.4"]
1 Measuring tape 3 m [9.8']
1 Hexagon wrench set
1 Charger (100–240 V AC)
1 DC split cable for charging
1 DC to USB adapter, for charging
1 Quick reference manual
1 Cleaning cloth for optics
1 USB memory with manuals

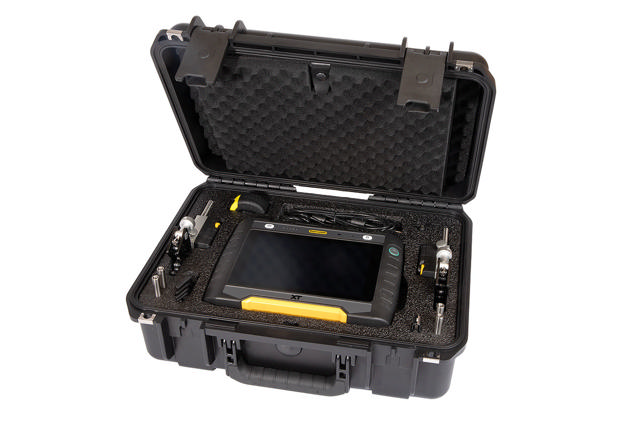

1 Carrying case Medium
Optional:
XT12 Display unit, with or without IR camera
XT12 Display unit
Rugged, robust, industrial grade tablet with wear resistant rubberized protective coating.
- IP66 and 67, dust- water- and shockproof.
- Large 8” glove enabled touch-screen.
- 16 hours operating time.
Recommended accessories
Technical data
| Battery type | Heavy duty Li-Ion chargeable |
| Communication | BT wireless technology |
| Dimensions | WxHxD: 76x76.7x45.9 mm [3.0x3.0x1.8"] |
| Electronic inclinometer | 0.1° resolution |
| Environmental protection | IP66/67, designed for outdoor use (pollution deg. 4) |
| Housing material | Anodized aluminium + PC/ABS + TPE |
| Laser Class | Safety class 2 |
| Laser output power | < 1 mW |
| Laser wavelength | 630–680 nm |
| Measurement accuracy | ±1µm ±1% |
| Measuring distance | Up to 20 m [66 feet] |
| OLED display | 128 x 64 pixels |
| Operating temperature | -10–50 °C [14–122 °F] |
| Operating time (continuous use) | Up to 24 hours |
| Relative humidity | 10–95% |
| Resolution | 0.001 mm [0.05 mils] |
| Storage temperature | -20–50 °C [-4–122 °F] |
| Type of detector | 1 axis TruePSD 20x20 mm [0.79x0.79"] |
| Type of laser | Diode laser |
| Weight | 272 g [9.6 oz] |
