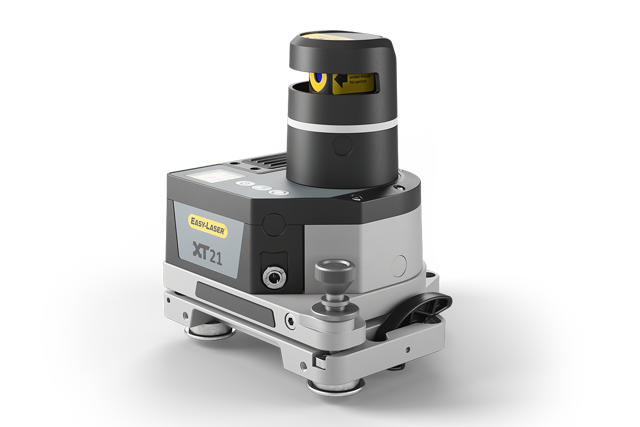

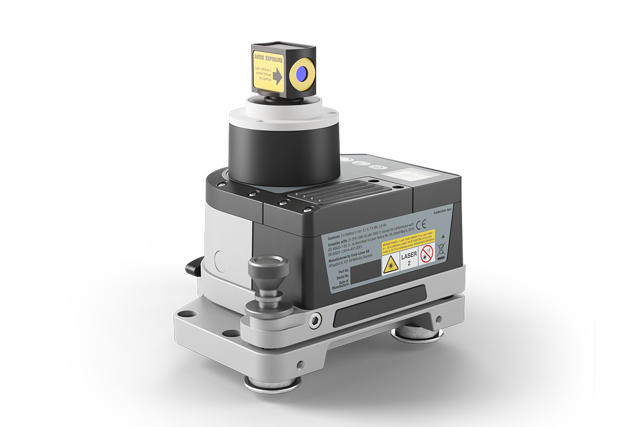

XT21 Laser transmitter
Part No: 12-1431
For measurement of flatness. The laser beam can sweep 360° with a measurement distance of up to 12 metres [40'].
- Spin laser (motorized laser head)
- 360° sweep
- Measurement distance of up to 12 meters [40’]
- Operating time up to 16 hours
Straightforward flatness measurement
Designed primarily for flatness measurement of flanges, such as wind tower flanges and slewing bearings, but can also be used for other types of flatness measurements.

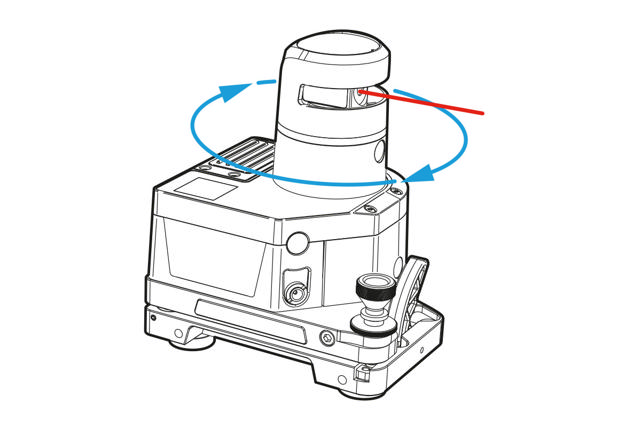

The transmitter is used together with detector XT7. The motorized laser head rotates continuously, creating a laser plane over the surface. Once set up, simply move the detector to each measurement position and record the values.
The transmitter is intended for flatness measurement and is not suitable for levelling.
Product details
A. Detachable top cover. B. On/Off, Change display view, Start/Stop spin. C. Charger connector D. Levelling knob E. Release lever. Also for dampening the strong magnet force when placing the transmitter on the surface. F. Fastening of separate magnet bases (x2). G. Solid aluminium core ensures rigid design. H. M6 thread (x4) for safety strap screw and other accessories/adaptations. I. Countersunk profile for fingers, for better grip when lifting the transmitter. J. Super magnets (×3). K. Rubberized grip surface. L. Square design makes it easy to position in a corner of an object, it also clearly indicates tilting angles and simplifies calibration. M. Clear TFT colour display. N. Spinning laser head
