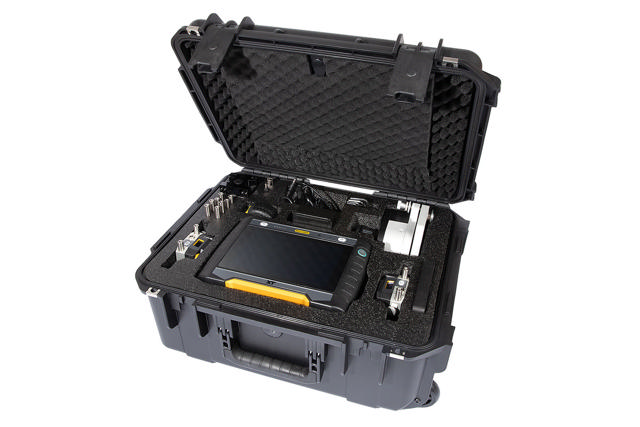

The complete laser alignment system
XT770 Shaft+GEO
The XT770 Shaft+GEO system has all the programs and functions you need to keep your machines up and running. It is configured for installation and overhaul of all types of rotating machinery, like e.g. gas compressors.
- Align the machine
- Check soft foot
- Check base twist and flatness
- Check straightness
- Measure machine movement over time
Laser transmitters for geometric measurements
The XT770 Shaft+GEO combines shaft alignment with geometric measurement capabilities. It enables precise alignment of rotating machinery and checking of geometric parameters like flatness and straightness. This makes it the ideal tool for machine installation and maintenance.
The system includes a separate laser transmitter, and you can select between two different models: the XT20 or XT22:
- XT20 is perfect for checking flatness and straightness during machine installation or surface flatness of machined parts.
- XT22 also lets you point the laser beam perpendicular to the laser plane. It provides more options for geometrical measurements, and even higher accuracy and precision.
By adding accessories, the system can also:
- Align cardan shafts
- Measure bore centerline straightness
- Measure dynamic movement of machines
Key strengths of XT770 Shaft+GEO
Handles geometric measurements
Flatness, straightness, squareness and parallelism (bore roundness as option)
Dot laser technology
For high accuracy and versatility.
360 Live adjustment
Adjust both vertically and horizontally at the same time.
Rugged design
Designed for harsh industrial environments (IP66 and 67).
Automatic documentation
A report is automatically generated in PDF and Excel format.
Long operating times
Measuring units run up to 24 hours continuously.
Features
The programs below are the most commonly used with this system.
The user interface is intuitive and guide you through the measurement process. It is animated and zooms into the most important things for each step. You can save the measurements of a machine for As found and As left in the same file.
For measurement and alignment of vertically and flange mounted machines.
Build your own machine train with theoretically as many machines as you like. You can pick the reference machine manually, or let the program choose one that will minimize the need for adjustments.
For alignment of cardan/offset mounted machinery. (Requires additional Cardan bracket kit.)
Alignment work begins with a soft foot check. The soft foot check ensures that the machine is resting evenly on all its feet by indicating which foot/feet should be adjusted. This is an important part of securing a reliable alignment. After the soft foot check is complete, you can go directly to the alignment program with all of the machine’s distance values saved.
Makes it possible to keep track of machine movement over time. Thus you can check for e.g. thermal expansion and pipe strain issues.

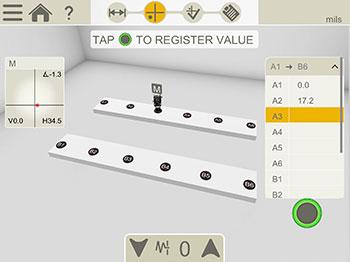

With this program you can check the flatness of foundations and frames, using two rows of points, 2 to 8 points per row. Separate laser transmitter required. (Requires laser transmitter XT20 or XT22).
Program to measure flatness/twist of, for example, machine foundation, machine tables, etc.

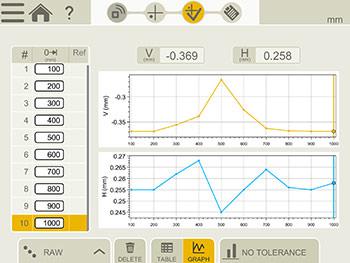

With our program for measuring straightness, you can easily measure long shafts, rolls, bearing journals, bases, overhead rails, machine structures etc. You will be able to get the result for both the horizontal and vertical alignment, graphically as well as digitally. The program automatically calculates different Best-fit results. (Requires laser transmitter XT20 or XT22.)
Use this program to measure the straightness of bore center line, bearing journals and other cylindrical objects. Measure 3–50 points at each position (Multipoint). If required, you can set tolerances. The result can be displayed as Best-fit calculated. Individual points can be remeasured. (Requires XT Bore bracket kit).
Use the M and S measuring units included to measure as with digital dial gauges, but with laser precision and the possibility to document the measurement result. With this program you can also check shaft radial play (bearing play).
Measurement points are recorded at fixed points 9, 12 and 3 o’clock. This is the classic three-point method which can be used in most cases. The preferred method for situations where the machine to be aligned is mounted on a moving object, and it is not possible to use the inclinometers (e.g., on ships, cranes, wind turbines etc.).
Ideal method for coupled machines where you manually rotate the shafts to any position. The EasyTurn™ function allows you to begin the measurement process from anywhere on the turn. You can turn the shaft to any three positions with as little as 20° between each position to register the measurement values. An easier-to-use version of the three-point method (see 9–12–3).
Automatic recording of measurement values during continuous sweeping of the shaft. The easiest and quickest way to obtain the alignment status on coupled machines. Hundreds of points are registered. Start recording, rotate, and stop at any angle and you get the results instantly. Quality check of measurement is provided.
Multi point is basically the same as EasyTurn™, but instead you can record multiple points on the sector rotated. This will provide an optimized calculation basis. Perfect for e.g. turbine and sliding bearing applications.
Used when the machines are uncoupled and when the rotation can be difficult to control. Rotate one shaft/unit at a time to pass with the beam over the other (stationary). Repeat alternately until enough measurement points are recorded. You can start and stop anywhere on the turn. Use it for big heavy machinery like gas turbines, wind turbines or gear boxes which can be difficult to rotate to a specific position.
Product videos
XT20 and XT22 laser transmitters
Laser transmitters for flatness, straightness and other types of geometric measurements.
Precision is key – especially during the machine setup phase. It is crucial that the machine is installed on a flat and level foundation.

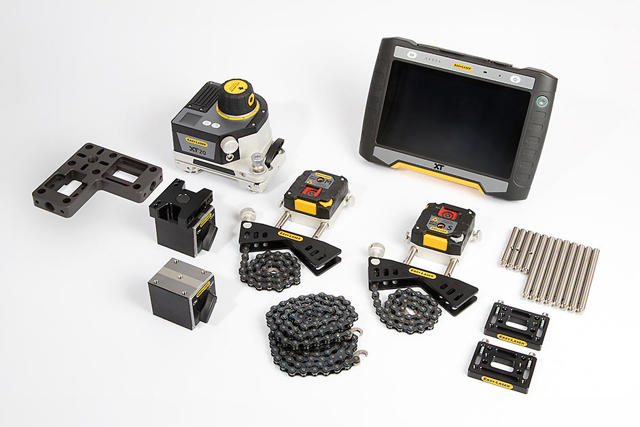

System parts
Below are some of the components included the system. Click “A complete system contains” to view the full list.
XT70-M / XT70-S Measuring units

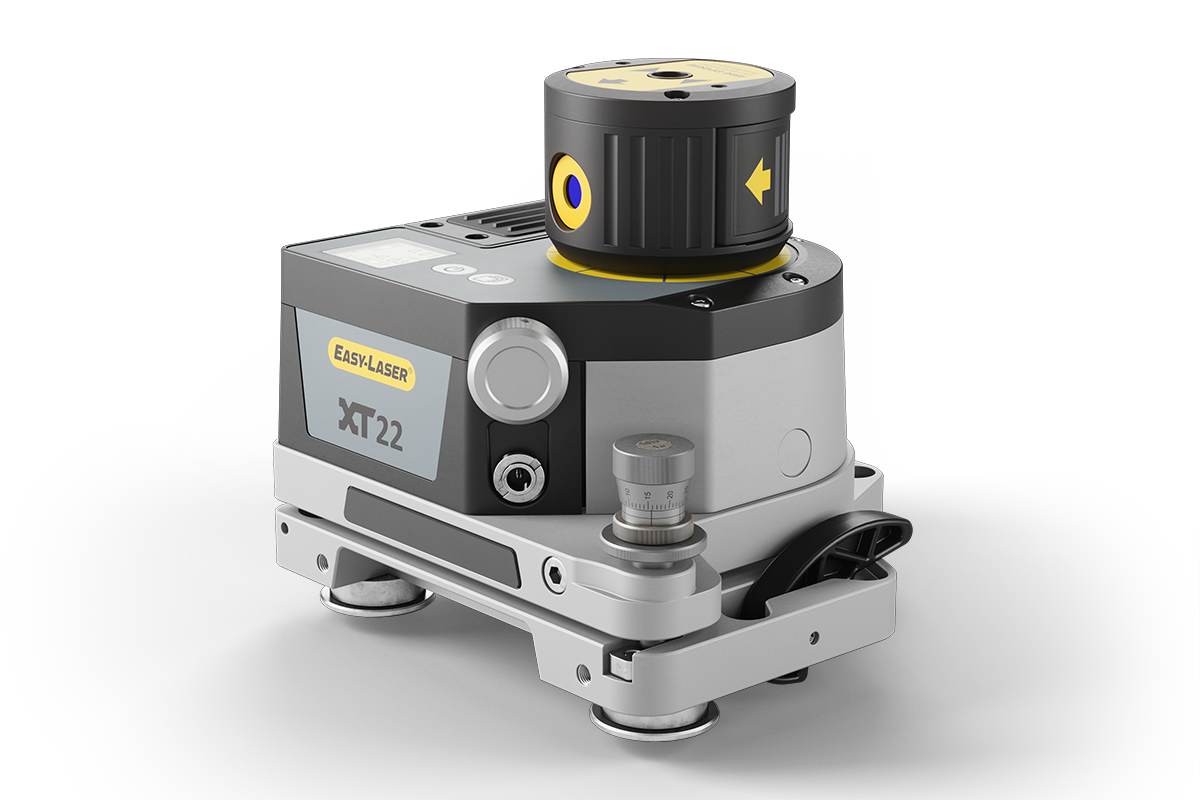

XT22 Laser transmitter
V-bracket with chain and rods

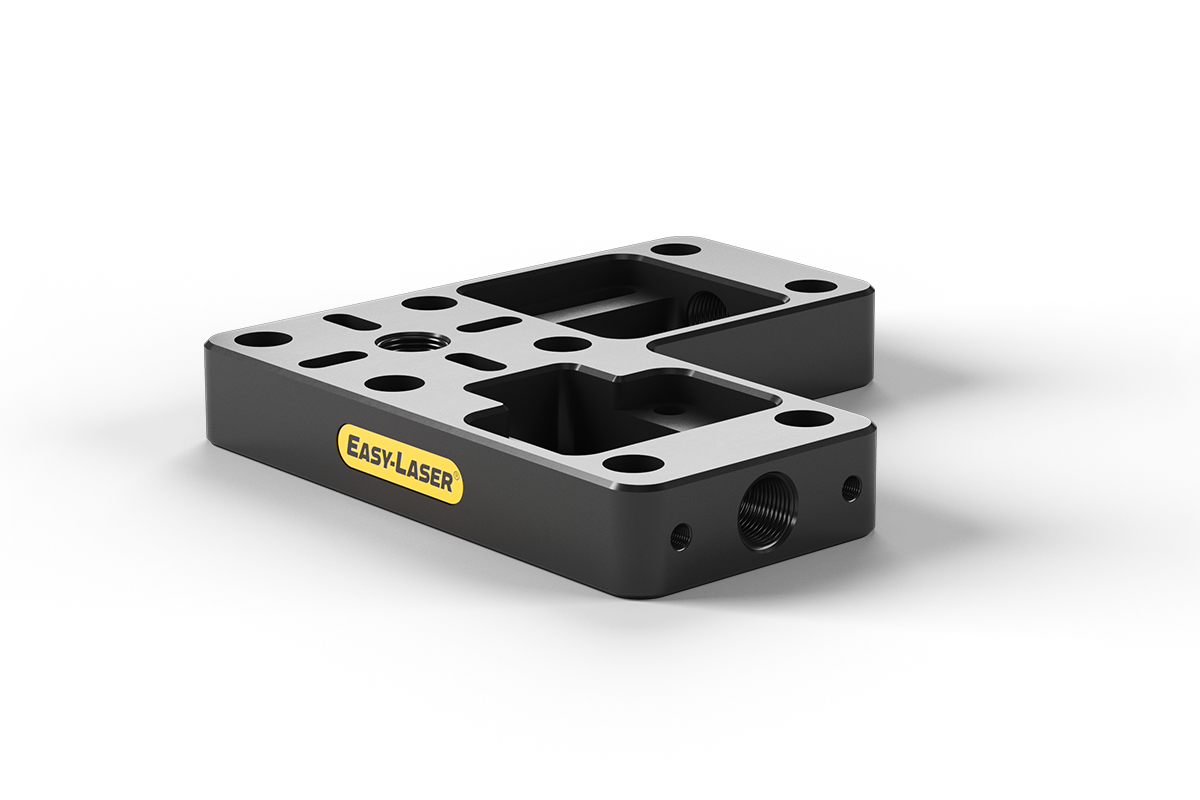

Multi bracket for laser transmitter
Offset bracket

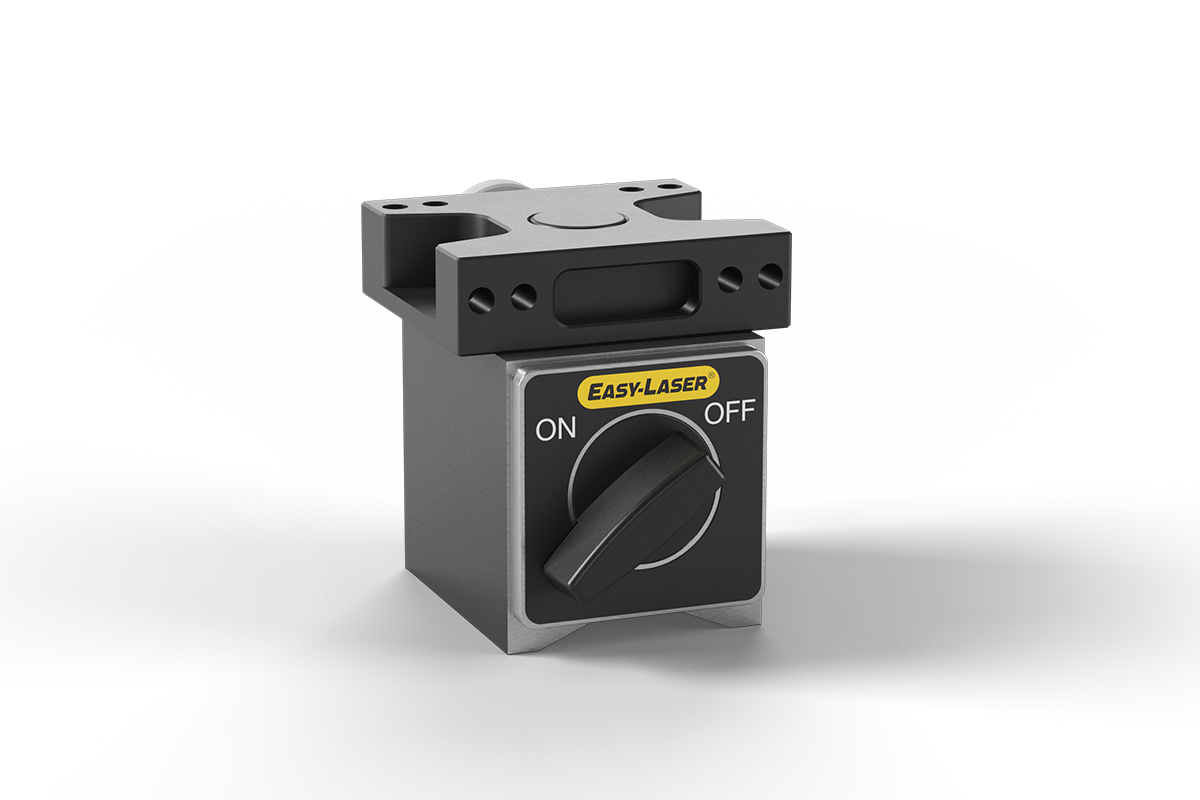

Magnet base with turnable head
1 Measuring unit XT70-M
1 Measuring unit XT70-S
1 Laser transmitter XT20 or XT22
1 Multi-bracket for laser transmitter
2 Shaft brackets with chains and rods 120 mm [4.72"]
1 Set of rods 4×75 mm [2.95"]
2 sets of rods 4×120 mm [4.72"]
1 Magnet base
1 Magnet base with turnable head
2 Offset brackets
2 Extension chain 900 mm [35.4"]
1 Measuring tape 3 m [9.8']
1 Hexagon wrench set
1 Charger (100–240 V AC)
1 DC split cable for charging
1 DC to USB adapter, for charging
1 Quick reference manual
1 Cleaning cloth for optics
1 USB memory with manuals
1 Carrying Large GEO, with wheels
1 Set of QR code stickers
Optional:
XT12 Display unit, with or without IR camera
XT12 Display unit
Rugged, robust, industrial grade tablet with wear resistant rubberized protective coating.
- IP66 and 67, dust- water- and shockproof.
- Large 8” glove enabled touch-screen.
- 16 hours operating time.
Recommended accessories
Technical data
| Battery type | Heavy duty Li-Ion chargeable |
| Communication | BT wireless technology |
| Electronic inclinometer | 0.1° resolution |
| Environmental protection | IP66/67, designed for outdoor use (pollution deg. 4) |
| Housing material | Anodized aluminium + PC/ABS + TPE |
| Laser Class | Safety class 2 |
| Laser output power | < 1 mW |
| Laser wavelength | 630–680 nm |
| Measurement accuracy | ±1µm ±1% |
| Measuring distance | Up to 20 m [66 feet] |
| OLED display | 128 x 64 pixels |
| Operating temperature | -10–50 °C [14–122 °F] |
| Operating time (continuous use) | Up to 24 hours |
| Relative humidity | 10–95% |
| Resolution | 0.001 mm [0.05 mils] |
| Storage temperature | -20–50 °C [-4–122 °F] |
| Type of detector | 2 axis TruePSD 20x20 mm [0.79x0.79"] |
| Type of laser | Diode laser |
| Battery type | Heavy duty Li-Ion chargeable |
| Beam diameter | 6 mm [0.24"] at aperture, 13 mm [0.51"] at 40 m [132'] |
| Charging temperature (battery) | 0–50 °C [32–122 °F] |
| Communication | BT wireless technology |
| Connections | Charger |
| Dimensions | WxHxD: 147x136x152 mm [5.79x5.35x5.98"] |
| Housing material | Anodized aluminium + PC/ABS + TPU |
| Laser head fine turning | 1:1320 gear ratio |
| Laser output power | < 1 mW |
| Laser plane flatness | ± 0.01 mm/m [± 0.01 mils/inch] |
| Laser Safety Class | Class 2 |
| Laser wavelength | 630–680 nm |
| Measuring distance | 40 m radius [132'] |
| Number of precision levels | 2 pcs Horizontal, 1 pc Vertical |
| Operating temperature | -10–50 °C [14–122 °F] |
| Operating time (continuous use) | Up to 30 hours |
| Precision level accuracy | ± 0.02 mm/m ±1% [± 0.02 mils/inch ±1%] |
| Precision level range | ± 10 mm/m [± 10 mils/inch] |
| Precision level sensitivity | 0.001 mm/m [0.001 mils/inch] |
| Relative humidity | 10–95% |
| Squareness between laser beams | ± 0.01 mm/m [± 0.01 mils/inch] |
| Storage temperature | -20–50 °C [-4–122 °F] |
| Type of laser | Fiber-coupled diode laser |
| Warmup time | 15 min |
| Warning indications | Tempearature drift and shake/vibration |
| Weight | 2264 g [79.86 oz] |
