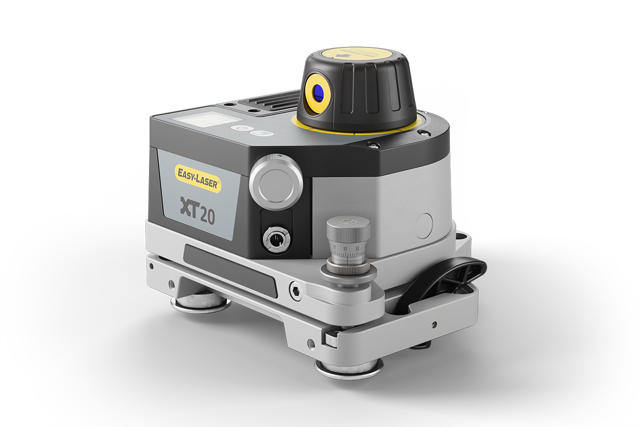

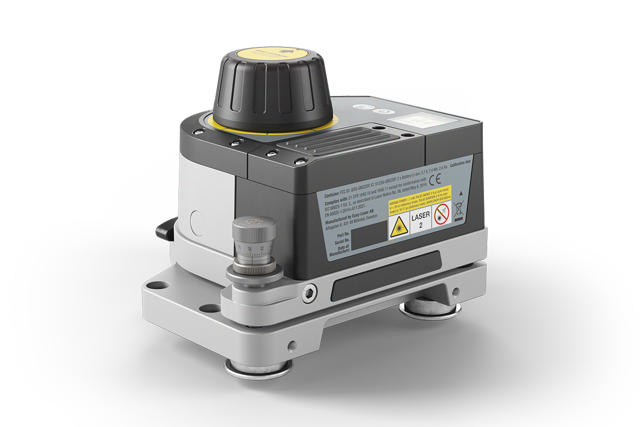

XT20 Laser transmitter

Stable 360° laser with precise control

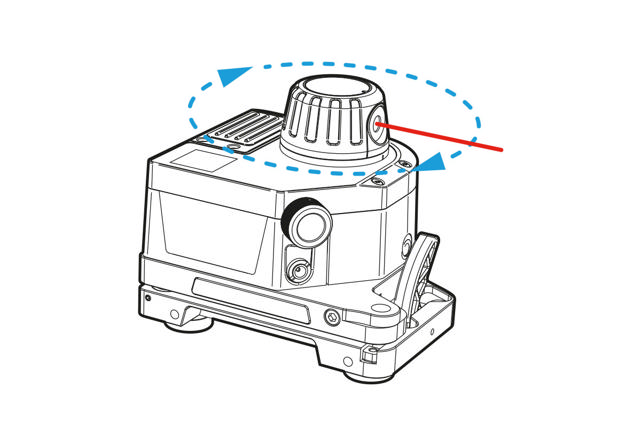

The transmitter projects a laser beam that sweeps 360°, with a measurement range of up to 20 metres (65 ft) in radius. The laser head is very stable yet easy to rotate, with no locking or unlocking screw required. A fine adjustment knob with a gear ratio of 1:132 makes it easy to accurately point the beam at the detector, even over long distances.

Wireless feedback

The XT transmitters have wireless connection to the XT Alignment App. During measurement the app provides warning messages if events occur that may affect the result, for example if the transmitter position has changed or if there are temperature changes inside the unit. The app can also guide you step by step when calibrating the levels before measurement.

Electronic levels mean benefits

The benefits with electronic levels over analogue ones are many:

• Digital readout (in the app or in the built-in display) means the accuracy will not be affected by user interpretation or possible bad ambient lighting.
• Electronic zeroing eliminates the cumbersome work caused by manual set up and associated errors that can follow.
• The electronic levels stabilize faster, resulting in a better user experience and quicker measurement jobs.

Versatile mounting options

The three super magnets can be mounted in many different positions on the transmitter, making it possible to also place the transmitter on a small surface, when needed. The Multi-bracket (included) provides a lot of extra, versatile mounting possibilities, for example mounting on tripod, magnet bases, or rods to elevate the transmitter.
