Why pulley alignment matters more than you think

Misaligned pulleys are one of the most common, and costly, causes of belt-driven machinery problems. Yet pulley alignment is often overlooked in regular maintenance routines.

The benefits of pulley alignment

Whether in manufacturing, HVAC systems, or marine applications, proper pulley alignment can significantly improve performance, reduce wear, and save energy. Below, we explore the main benefits of pulley alignment and why it's worth investing in accurate alignment tools.

Reduced energy consumption

When pulleys are misaligned, the belt doesn't run smoothly. Instead, it slips, bends, or rides unevenly, which increases friction and resistance. This extra load forces the motor to work harder, consuming more energy.

Even small misalignments can lead to surprisingly large losses. A case study shows that proper pulley alignment can reduce energy consumption by up to 20 percent – a saving that quickly adds up in systems running 24/7.

Extended belt and pulley life

Misalignment causes uneven tension and side loading on belts, which leads to premature wear or even breakage. Heat generated from high friction will also degrade the belt material over time. The pulleys themselves also suffer, developing irregular wear patterns that eventually require costly replacement.

By aligning pulleys correctly, you ensure even load distribution, reduce vibrations, and minimize belt tracking issues. This extends the service life of both belts and pulleys and reduces the need for unplanned downtime.

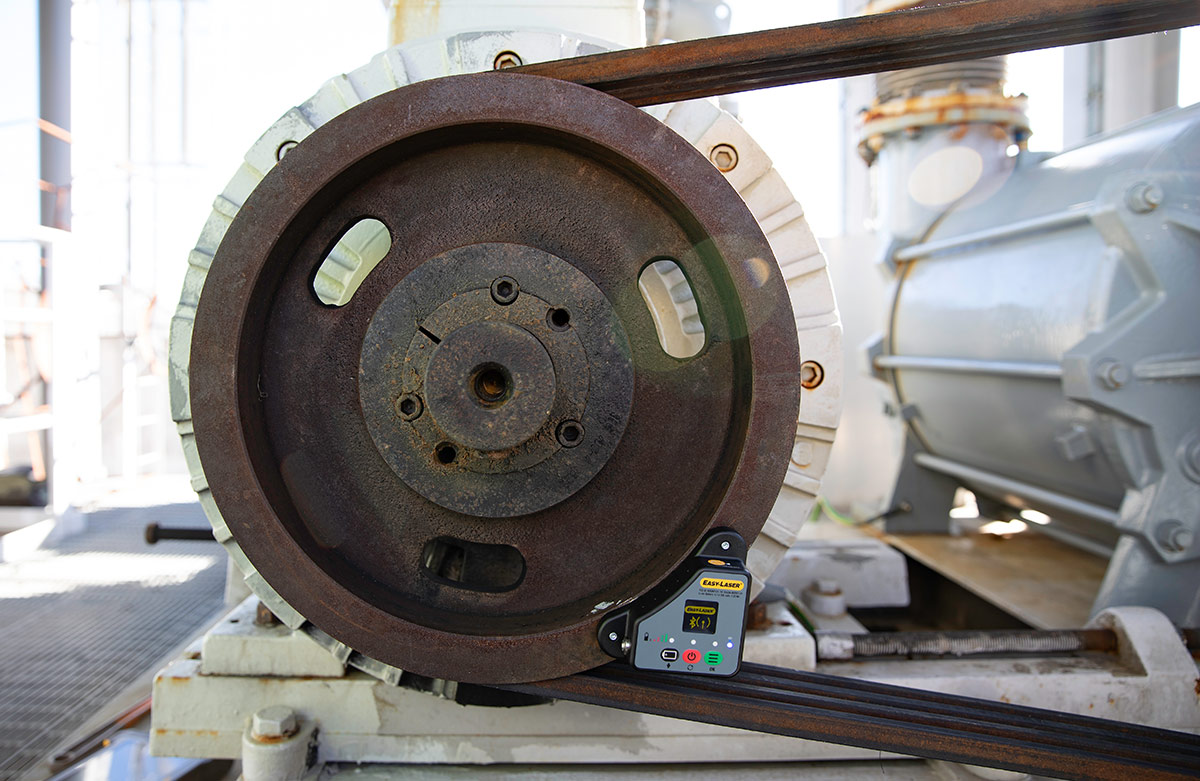

The XT190 BTA alignment tool is attached to the side of the pulley with magnets.

Improved machine reliability

Poor alignment doesn’t just affect the belt drive. It can introduce vibration and stress that travels through the machine, affecting bearings, couplings, and connected components. Over time, this can lead to serious breakdowns and costly repairs.

Proper pulley alignment improves machine stability and reliability. You get fewer unexpected breakdowns and more predictable maintenance intervals with regular alignment checks.

Faster and safer maintenance

Alignment using straightedges or string can be time-consuming and there is always the risk of human error. Laser alignment tools eliminate guesswork by providing clear visual feedback and live digital readouts. Unlike traditional methods, they allow you to check alignment in both horizontal and vertical planes simultaneously, without rotating components or needing extensive disassembly. One technician can perform the job accurately in a fraction of the time. The result is faster alignment, fewer errors, and safer working conditions.

A smart investment with lasting returns

When you add up the energy savings, extended component life, reduced downtime, and faster maintenance, the total cost of ownership for belt-driven equipment drops significantly. In short, pulley alignment matters more than you might think, and even a small adjustment will bring measurable returns. And investing in a laser alignment tool like the Easy-Laser XT190 BTA quickly pays for itself through these ongoing savings, especially in operations with multiple belt-driven machines or high uptime requirements.




What is pulley alignment?

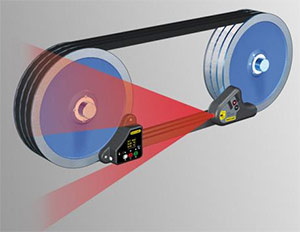

Pulley alignment is the process of ensuring that pulleys (sometimes also referred to as sheaves) in a belt-driven system are positioned correctly relative to each other. The laser belt alignment tool projects a laser line that runs parallel to one pulley. This line acts as a reference to align the other pulley.
