For quick and easy alignment of sheaves/pulleys
D92 BTA
D92 BTA projects a clear laser line across the targets, making it easy to see and correct misalignment on almost any type of sheave. Mounted in seconds and simple to use, it provides precise alignment that reduces wear and improves machine efficiency.
- Visual targets for instant readings
- Works with all common belt types
- Attaches magnetically
Simple mounting for instant alignment

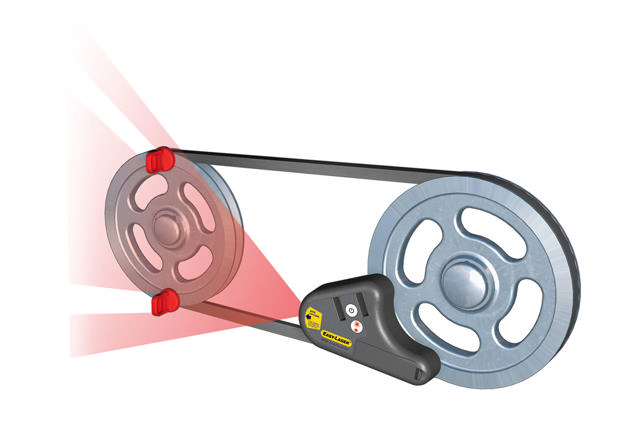

Easy-Laser® D92 BTA is designed for fast, straightforward alignment of sheaves and pulleys. The tool attaches in a few seconds, using strong magnetic surfaces on both transmitter and targets. For non-magnetic sheaves, double-sided tape can be used instead. Once mounted, the transmitter projects a laser line onto the targets. When the line sits precisely in the target slots, the alignment is correct.
The system works on V-belt, flat belt, timing belt and chain drives, and its adjustable targets fit both small and large sheaves. This makes D92 BTA a practical everyday tool for maintenance teams across many industries.

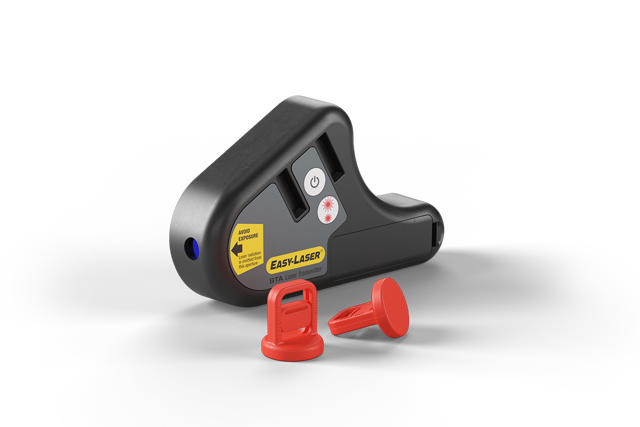

- 1 Laser transmitter
- 2 Targets
- 1 Padded case
- 1 Manual
- 1 Battery R6 (AA) 1.5 V
