THE PERFECT ADDITION TO LASER ALIGNMENT

Digital levels are extremely useful tools for setting-up and aligning most types of machine, for example, levelling machine tables, rolls, bases, etc. Other areas of use include checking straightness, flatness and parallelism.

Easy-Laser® E290 offers the possibility of documenting the work, by wirelessly connecting to your Easy-Laser® alignment system. Today, documentation is a common client requirement.

E290 is the perfect addition to laser based alignment systems and is an investment that can be recouped quickly thanks to the broad areas of use.
Accuracy is guaranteed by the precision-ground, hardened steel base. Easy-to-read OLED display and a rechargeable battery make it easy to use. Two mounting holes allow for your own adaptations and fixtures.

CONNECT TO A SEPARATE DISPLAY UNIT

Using a separate display unit (accessory) makes it all even easier, as you can read off and follow the adjustment at the precise point on the machine where the adjustment is made. The measurement values can be documented and transferred to PC, for further completion of a measurement report.


Digital and graphical read-out on Easy-Laser® display unit and iPhone/iPod touch.

  • Clear OLED display
  • Wireless connection
  • IP class 67
  • Built-in rechargeable battery
  • Precision-ground prismatic base of hardened steel
  • App available for Iphone, iPad and iPod touch








Get a quote
features

PROGRAMS AND FUNCTIONS

The key to a quick and reliable measurement are programs that guide you through the measurement process. The Easy-Laser® systems support you with smart functions and a clear user interface. Still, it is not our products that do the job, but you as a professional technician!

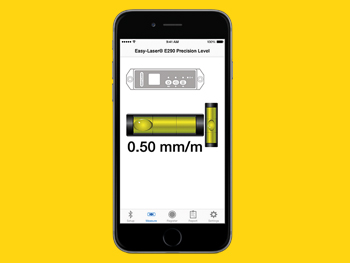

APP PRECISION LEVEL

The Precision Level app is used together with the E290 Digital Precision Level. With this app your phone becomes a handy display unit which you can read off at the precise point where you adjust the machine. Climbing up and down on the machine several times to check the precision level value can now be reduced significantly. Available for Iphone, iPad and iPod touch.

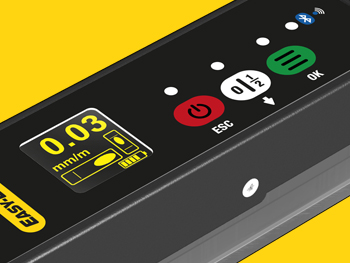

DISPLAY PRECISION LEVEL

The E290 Precision Level has a clear OLED display with large figures and graphical indication of the angle direction. The value can be zeroed and halved.

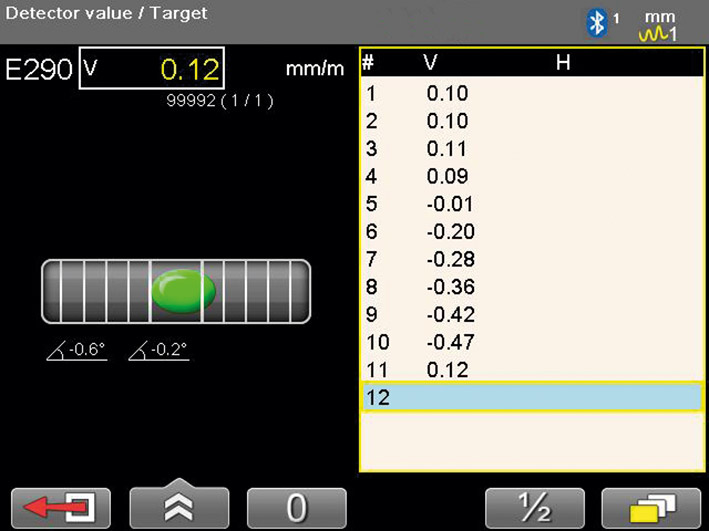

LEVEL

The Level program for display unit E51* is used together with the E290 Digital Precision Level. A digital level is perfect for installation, setting up and maintenance of precision machines, leveling of machine tables, rolls, etc – basically anything you can think of!
*E51 is included with the E710 and E9xx systems.

system parts

E290 DIGITAL PRECISION LEVEL

For installation, setting up and maintenance of precision machines, leveling of machine tables, rolls, etc – basically anything you can think of! Built-in rechargeable battery. OLED display with digital and graphical representation of angles. Connects wirelessly to display unit E51 for more functionality. Resolution 0.01 mm/m (0.001°). Measurement range ± 2 mm/m.

image description
  1. OLED Display
  2. Mounting holes (x2)
image description
  1. Precision prismatic base of hardened steel

A COMPLETE SYSTEM CONTAINS

  • 1 E290 Digital Precision Level
  • 1 Manual on USB stick
  • 1 Charger (100-240 V AC) with Cable
  • 1 Transportation case
technical data

Technical Data

Other receivers (Digital)

Name
Digital precision Level E290
Part No.
12-0846
Resolution
0.01 mm/m (0.001°)
Range
± 2 mm/m
Measurement error
Better than ± 0.02 mm/m
Type of display
OLED
Communication
BT wireless technology
Environmental protection
IP Class 67
Operating temperature
-10–50 °C
Internal battery
Li Po
Material
Anodized aluminium , ABS plastics
Dimensions
WxHxD: 149x40x35 mm [5.9x1.6x1.4”]
Weight
530 g [18.7oz]
downloads

Downloads

You can find product brochures and manuals in pdf format here. They contain further information about our products. Software updates are also available for downloading.

Manuals

E290 Manual

Brochures

Product Catalogue rev. 16
E290 brochure
Product Overview
